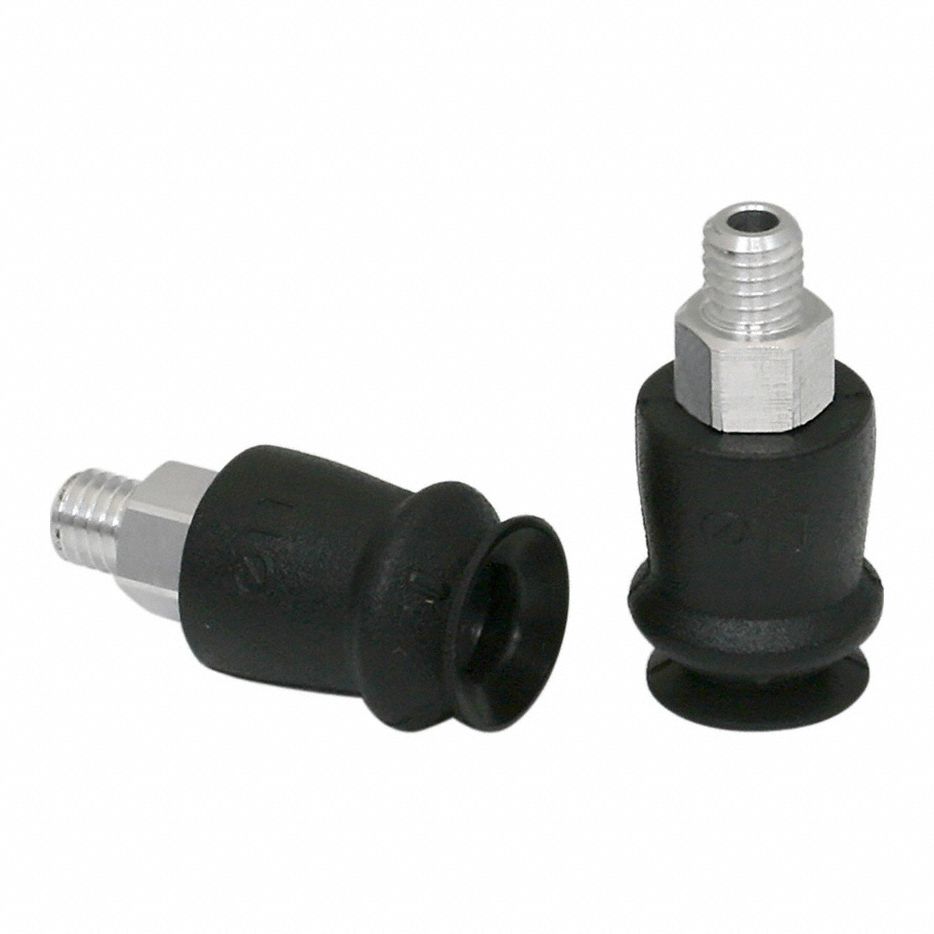

Schmalz 3G-OTH-171236 — Technical Specifications

Name: Schmalz 3G-OTH-171236 SCHMALZ Vacuum Pad Assembly: 1.5 Folds, M5, 13 mm Pad Dia, NBR, 55 A, Black, 21 mm Pad Ht (MPN 10.01.06.00076). Key specifications — attr1019168: 55 A; attr1019165: 10.01.06.00076; attr1019167: SCHMALZ; attr1019180: Black.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a bellows-type electronics industry vacuum pad assembly with 1.5 folds. It features an M5 connection, 13 mm pad diameter, NBR material, 55 A durometer, black color, and 21 mm pad height (MPN 10.01.06.00076).

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5, NBR, 55 A, Black
Pad Ht	21 mm
Pad Dia	13 mm
Manufacturer Part Number	10.01.06.00076
