Schmalz 3G-OTH-171600 — Technical Specifications

Name: Schmalz 3G-OTH-171600 SCHMALZ Vacuum Pad Assembly: Flat Oval, 3/8 in NPT, 50 mm_100 mm Pad Dia, NBR, Blue, 45 A, SAOF (MPN 10.01.05.00760). Key specifications — attr1019101: 10.01.05.00760; attr1019103: SCHMALZ; attr1019107: 45 A.
Brand: Schmalz

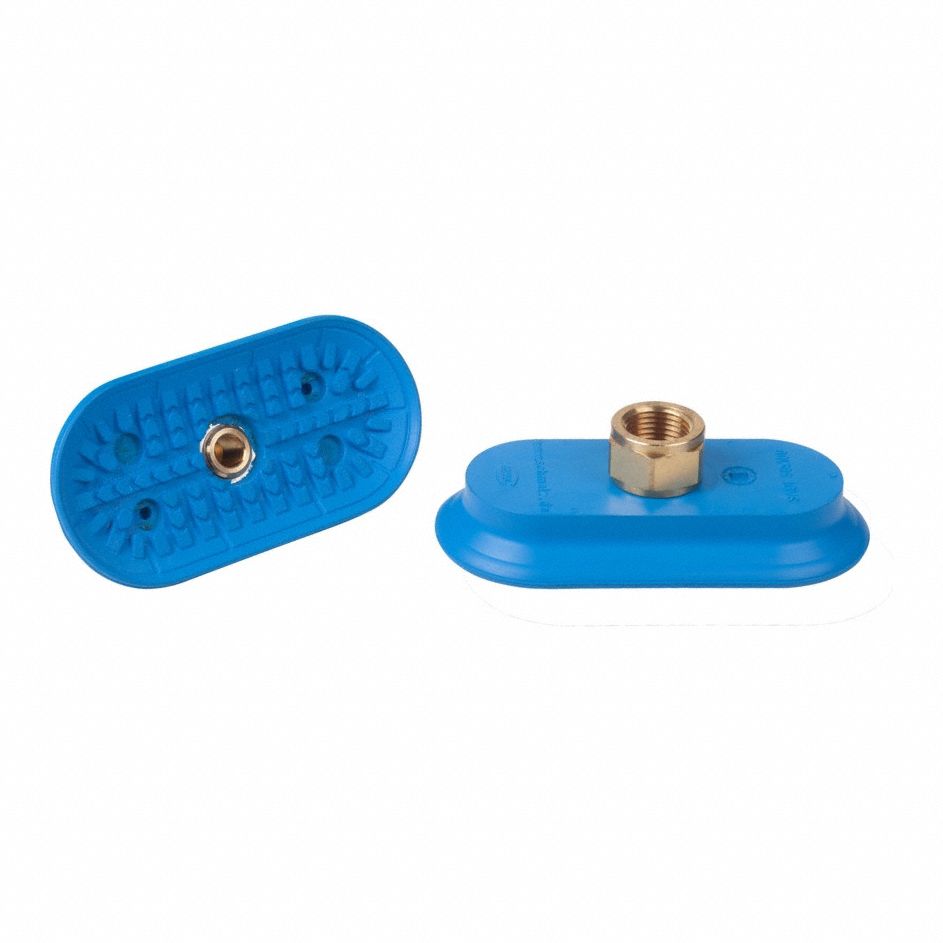

The SCHMALZ Vacuum Pad Assembly is a flat oval type vacuum pad assembly designed for automotive industry applications. This model, SKU 814HC0 with manufacturer part number 10.01.05.00760, features a 45 A rating. It includes a 3/8 in NPT connection, 50 mm_100 mm pad diameter, and is constructed from NBR material in blue color, designated as SAOF.

View Product & Quote

Technical Specifications

Parameter	Value
NPT	3/8 in
Type	50 mm_100 mm Pad Dia, NBR, Blue, 45 A, SAOF
Manufacturer Part Number	10.01.05.00760
