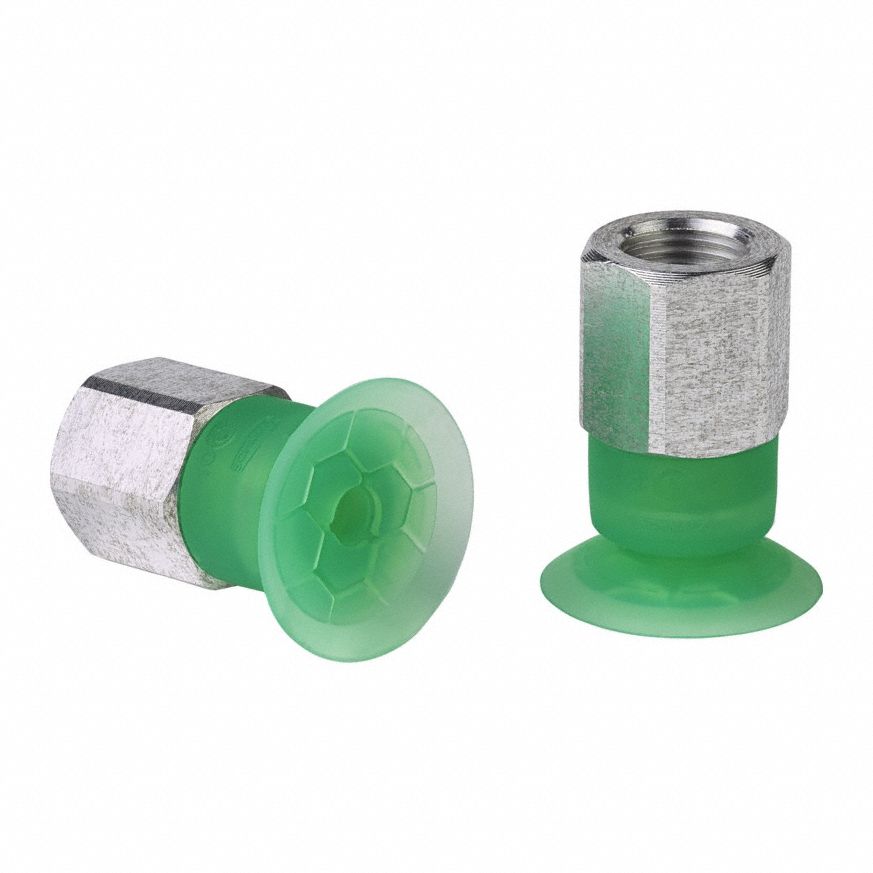

Schmalz 3G-OTH-160104 — Technical Specifications
The SCHMALZ Vacuum Pad Assembly is a flat-type, food-safe film and paper vacuum pad assembly (SKU 814HG5, MPN 10.01.01.14975). It features a 1/8 in NPT vacuum port, a 26.5 mm pad diameter, and a 27.2 mm pad height in green. The assembly is rated 55 A and is designed for handling film and paper in food-safe applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Green |
| Pad Ht | 27.2 mm |
| Pad Dia | 26.5 mm |
| NPT Vacuum Port | 1/8 in |
| Manufacturer Part Number | 10.01.01.14975 |
