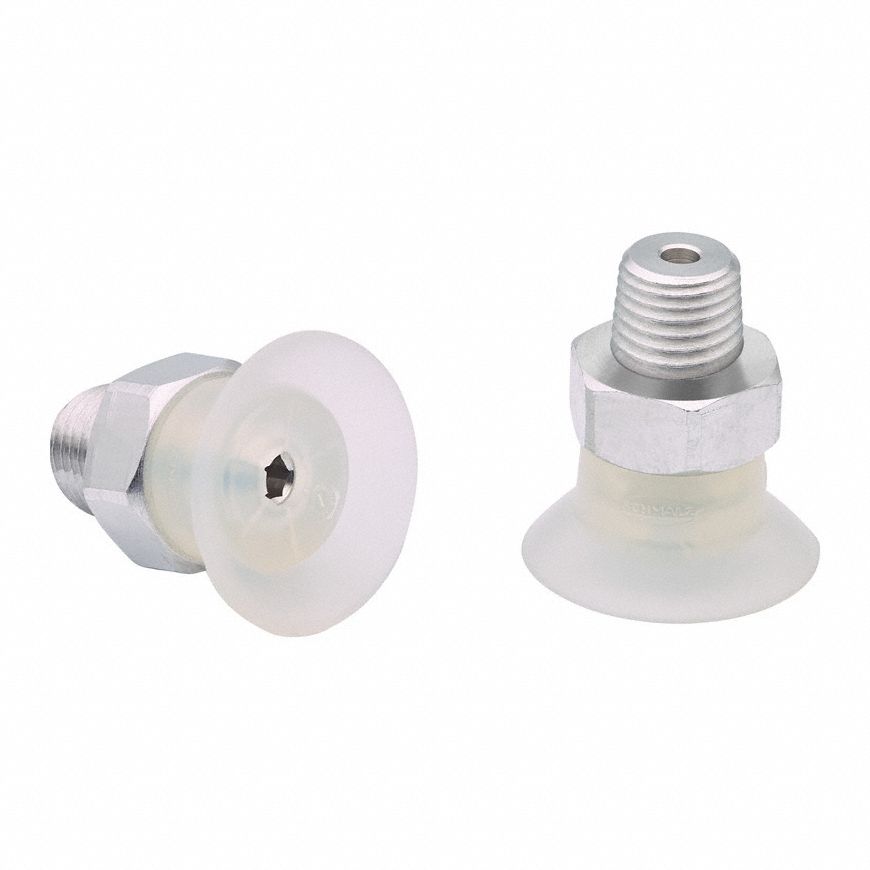

Schmalz 3G-OTH-159852 — Technical Specifications

Name: Schmalz 3G-OTH-159852 SCHMALZ Vacuum Pad Assembly: Flat, 1/8 in NPT Vacuum Port, 16.8 mm Pad Dia, Clear, 14.9 mm Pad Ht (MPN 10.01.01.15004). Key specifications — attr1019136: 10.01.01.15004; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat type, food-safe fast-handling vacuum pad assembly (SKU 814HP3, MPN 10.01.01.15004). It features a 1/8 in NPT vacuum port, a 16.8 mm pad diameter, and a 14.9 mm pad height in a clear design. The assembly is rated at 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Clear
Pad Ht	14.9 mm
Pad Dia	16.8 mm
NPT Vacuum Port	1/8 in
Manufacturer Part Number	10.01.01.15004
