Schmalz 3G-OTH-159858 — Technical Specifications

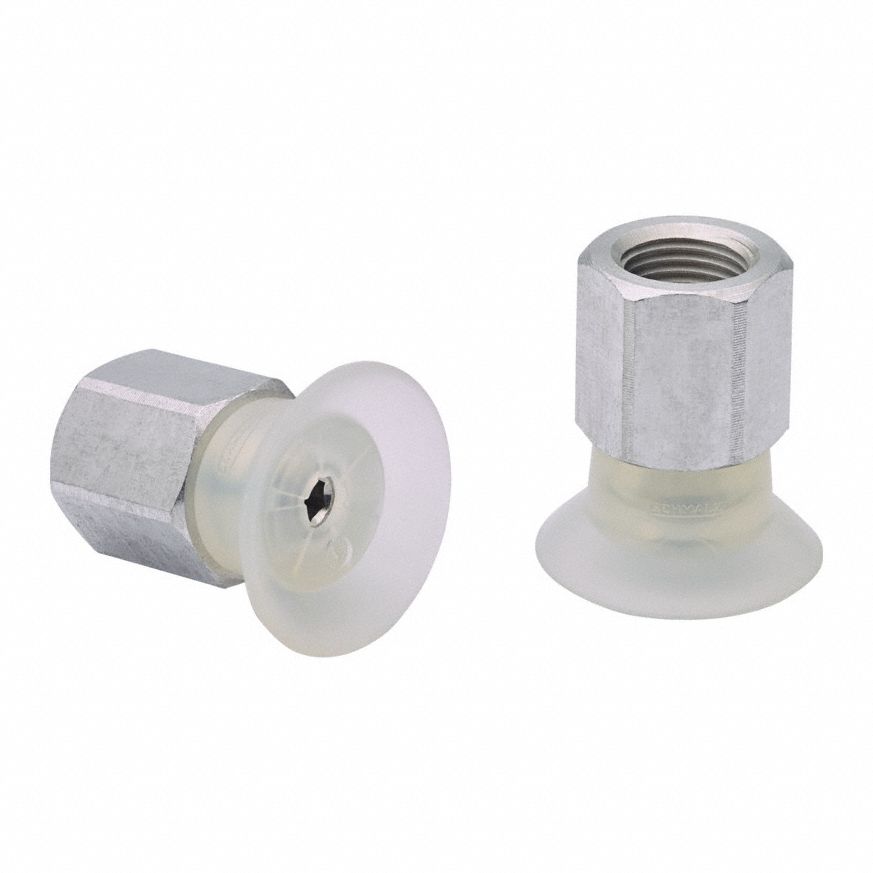

Name: Schmalz 3G-OTH-159858 SCHMALZ Vacuum Pad Assembly: Flat, 1/8 in NPT Vacuum Port, 22.8 mm Pad Dia, Clear, 23.5 mm Pad Ht (MPN 10.01.01.15021). Key specifications — attr1019136: 10.01.01.15021; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat-type, food-safe fast-handling vacuum pad assembly (SKU 814HT5, MPN 10.01.01.15021). It features a 1/8 in NPT vacuum port, 22.8 mm pad diameter, and 23.5 mm pad height in clear material. This assembly is rated 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Clear
Pad Ht	23.5 mm
Pad Dia	22.8 mm
NPT Vacuum Port	1/8 in
Manufacturer Part Number	10.01.01.15021
