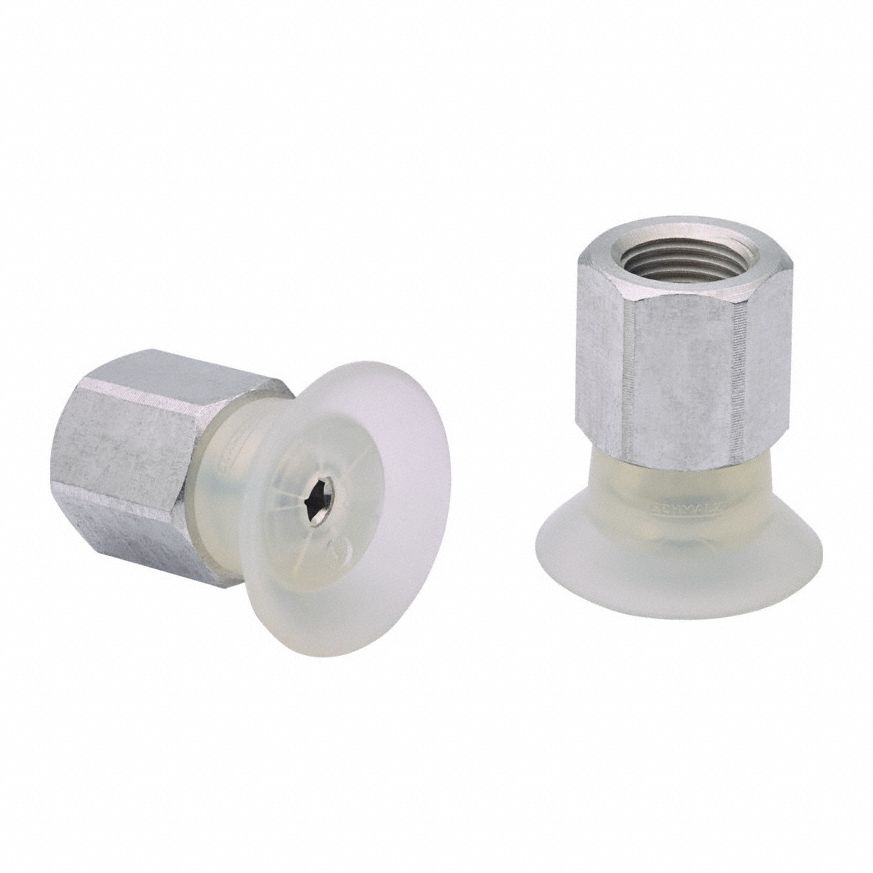

Schmalz 3G-OTH-159834 — Technical Specifications

Name: Schmalz 3G-OTH-159834 SCHMALZ Vacuum Pad Assembly: Flat, 1/8 in NPT Vacuum Port, 33.3 mm Pad Dia, Clear, 25.7 mm Pad Ht (MPN 10.01.01.15046). Key specifications — attr1019136: 10.01.01.15046; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat type, food-safe fast-handling vacuum pad assembly (MPN 10.01.01.15046). It features a 1/8 in NPT vacuum port, 33.3 mm pad diameter, and 25.7 mm pad height in a clear design. The assembly is rated 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Clear
Pad Ht	25.7 mm
Pad Dia	33.3 mm
NPT Vacuum Port	1/8 in
Manufacturer Part Number	10.01.01.15046
