Schmalz 3G-OTH-159878 — Technical Specifications

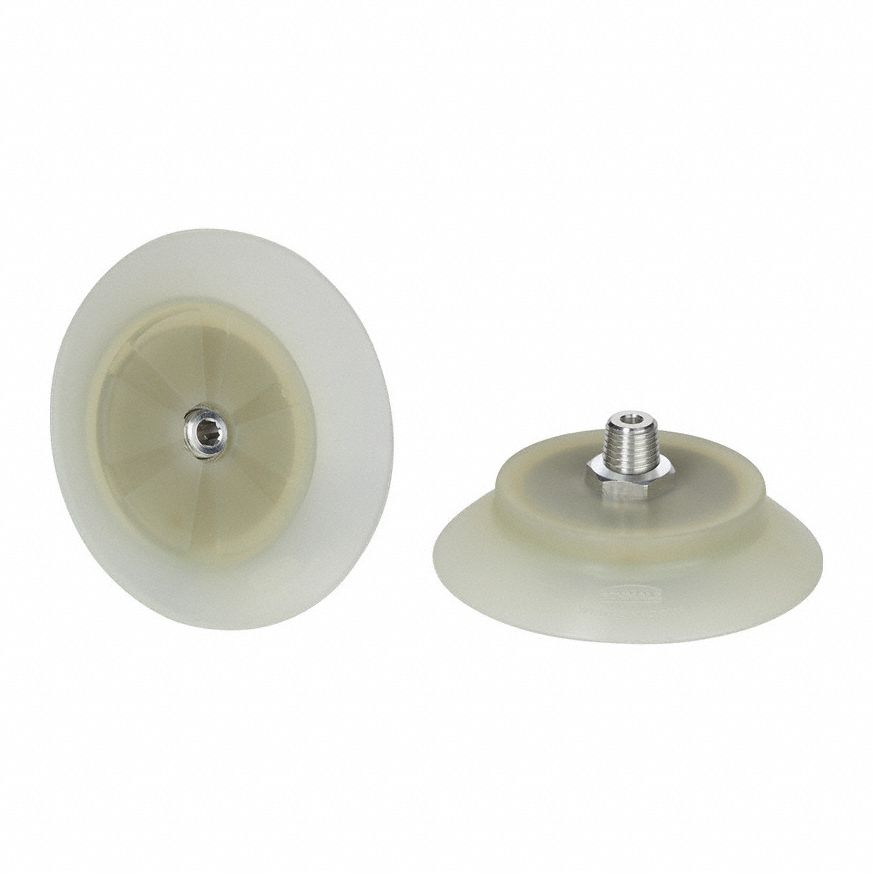

Name: Schmalz 3G-OTH-159878 SCHMALZ Vacuum Pad Assembly: Flat, 1/4 in NPT Vacuum Port, 87.1 mm Pad Dia, Clear, 23 mm Pad Ht, SUF (MPN 10.01.01.15150). Key specifications — attr1019136: 10.01.01.15150; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat type, food-safe fast-handling vacuum pad assembly (SKU 814J01, MPN 10.01.01.15150). It features a 1/4 in NPT vacuum port, 87.1 mm pad diameter, 23 mm pad height, and is clear in color. The assembly is rated 55 A and is designed for industrial vacuum handling applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Clear, SUF
Pad Ht	23 mm
Pad Dia	87.1 mm
NPT Vacuum Port	1/4 in
Manufacturer Part Number	10.01.01.15150
