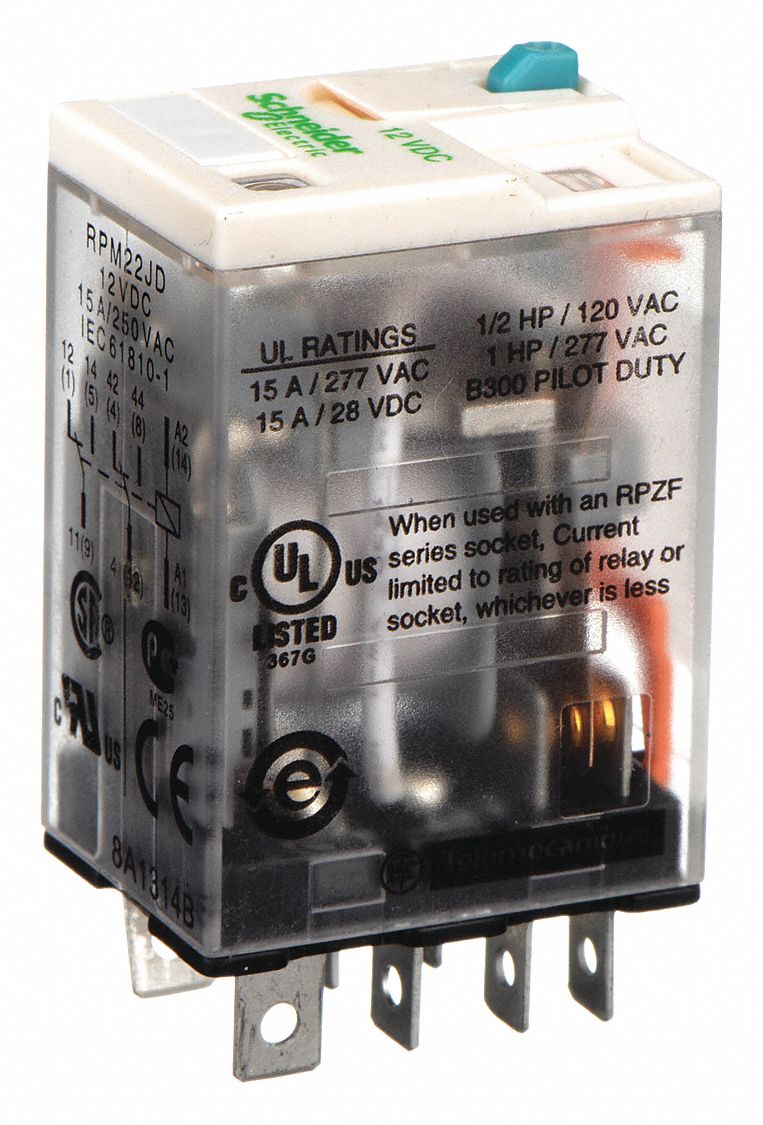

Schneider 3G-OTH-37114 — Technical Specifications
The SCHNEIDER Harmony™ RPM Series General Purpose Relay is a socket-mounted relay with a square base and plug-in mounting style. It features a DPDT contact configuration, a 15 A current rating, and operates on 12V DC. The relay has 8 flat pins/terminals with quick-connect electrical connections, identified by manufacturer part number RPM22JD.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 12V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | Harmony™ RPM Series |
| Base Type | Square |
| Pin Shape | Flat |
| Current Rating | 15 A |
| Mounting Style | Plug-In |
| Pins/Terminals | 8 |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | RPM22JD |
