Schneider 3G-OTH-36425 — Technical Specifications

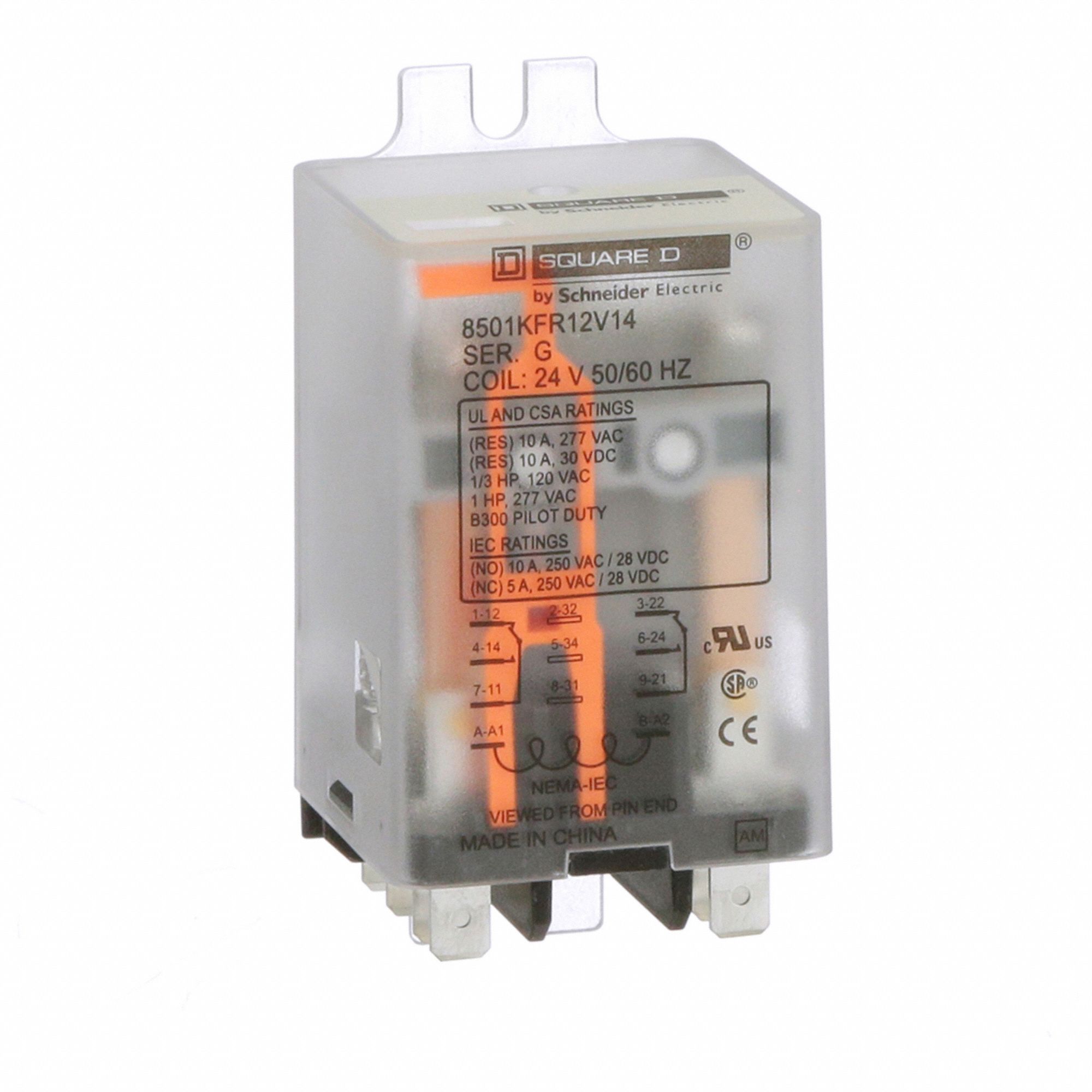

The SCHNEIDER Flange Mount Relay is a surface-mounted relay from the Square D Universal Series, featuring a side flange mounting style and a square base. It is a DPDT relay with a 10 A operating current at 30V DC (resistive load) and a 24V AC coil, using push-on terminals for electrical connection (MPN 8501KFR12V14).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 24V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | Square D Universal Series |
| Base Type | Square |
| Current Rating | 10 A |
| Mounting Style | Side Flange |
| Operating Current | 10 A at 30V DC (Resistive Load) |
| Electrical Connection | Push-On Terminal |
| Manufacturer Part Number | 8501KFR12V14 |
