Schneider 3G-OTH-38501 — Technical Specifications

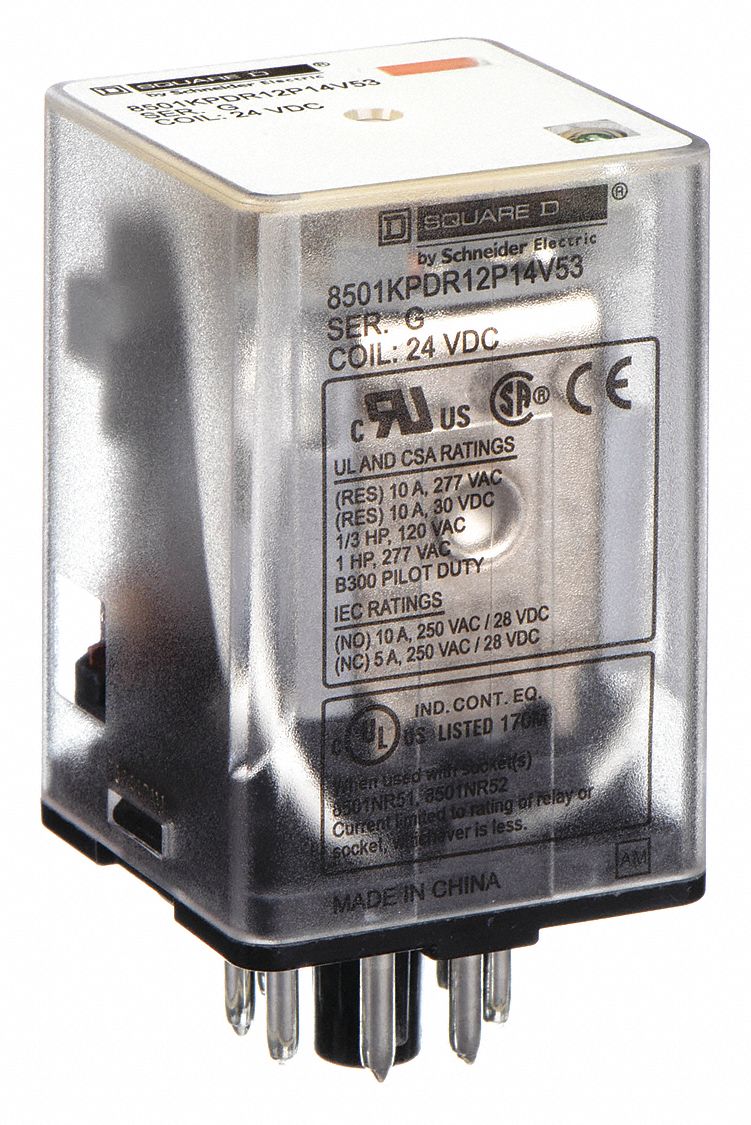

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501K Series, featuring an octal base with round pins and a plug-in mounting style. It has a DPDT contact configuration, a 10 A current rating, and operates on 24V DC, with an 8-pin terminal electrical connection (MPN 8501KPDR12P14V53).
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 24V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | Square D 8501K Series |
| Base Type | Octal |
| Pin Shape | Round |
| Current Rating | 10 A |
| Mounting Style | Plug-In |
| Pins/Terminals | 8 |
| Electrical Connection | 8-Pin Terminal |
| Manufacturer Part Number | 8501KPDR12P14V53 |
