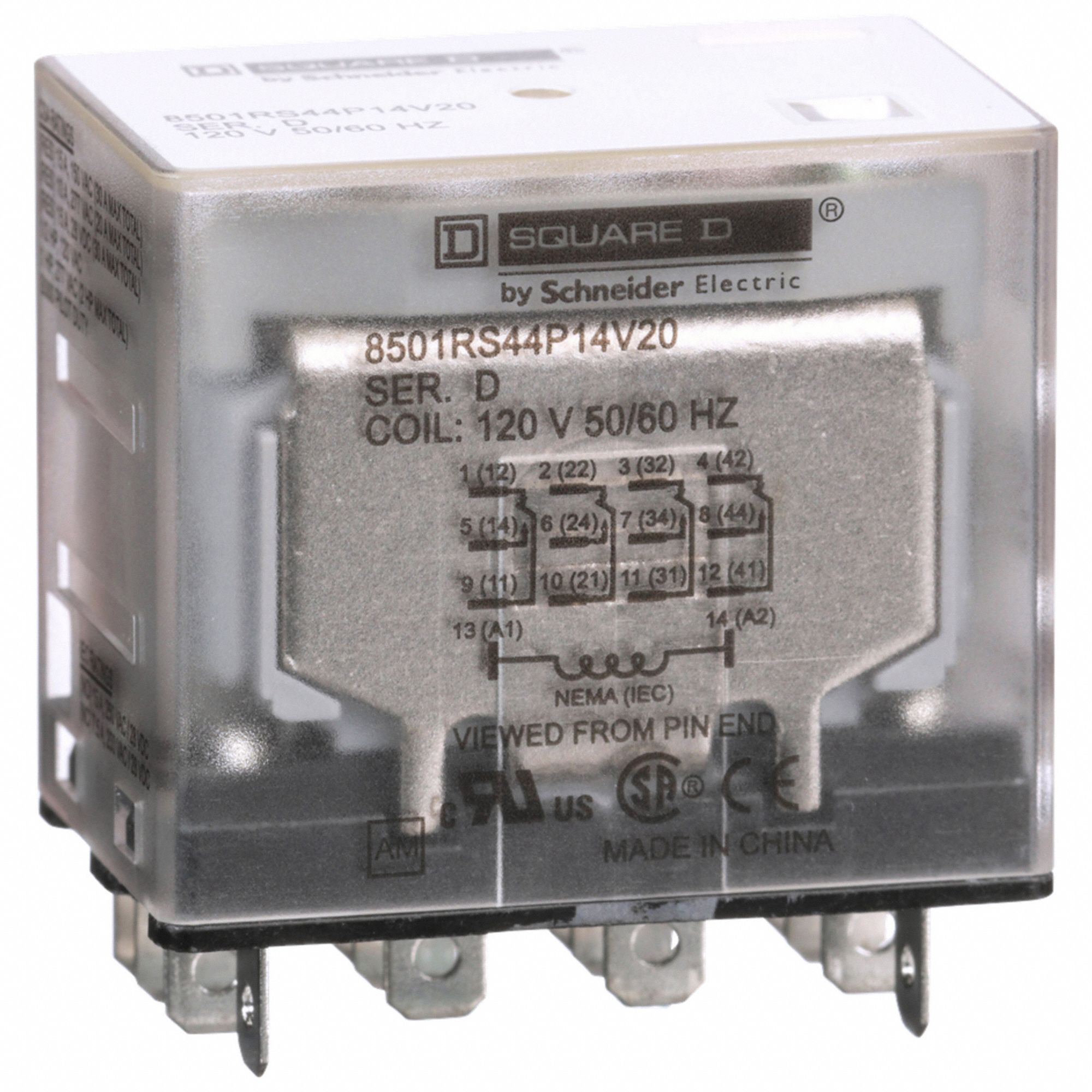

Schneider 3G-OTH-40681 — Technical Specifications
The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Series. It features a square base with flat pins, a quick-connect electrical connection, and a 4PDT contact configuration. The relay is rated for 15 A at 120V AC and uses an F socket (MPN 8501RS44P14V20).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | 4PDT, F Socket |
| Brand | SCHNEIDER |
| Series | Square D 8501R Miniature Series |
| Base Type | Square |
| Pin Shape | Flat |
| Current Rating | 15 A |
| Mounting Style | Socket |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | 8501RS44P14V20 |
