Schneider 3G-OTH-39147 — Technical Specifications

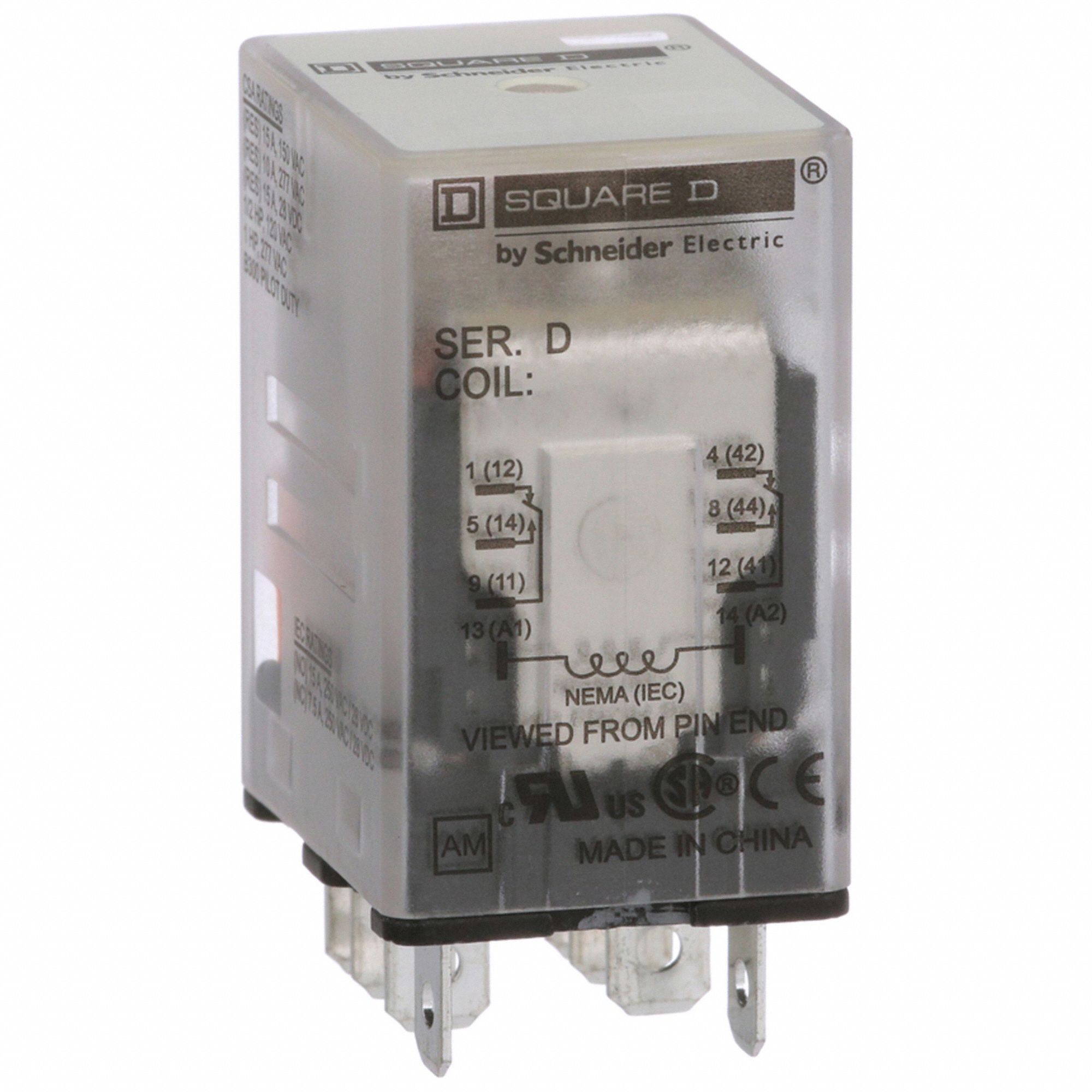

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501R Miniature Series, featuring a DPDT contact configuration with 8 pins/terminals. It has a 15 A current rating, operates on 24V DC, and uses a square base with flat pins and quick-connect electrical connections for straightforward installation.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 24V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | Square D 8501R Miniature Series |
| Base Type | Square |
| Pin Shape | Flat |
| Current Rating | 15 A |
| Mounting Style | Socket |
| Pins/Terminals | 8 |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | 8501RSD42V53 |
