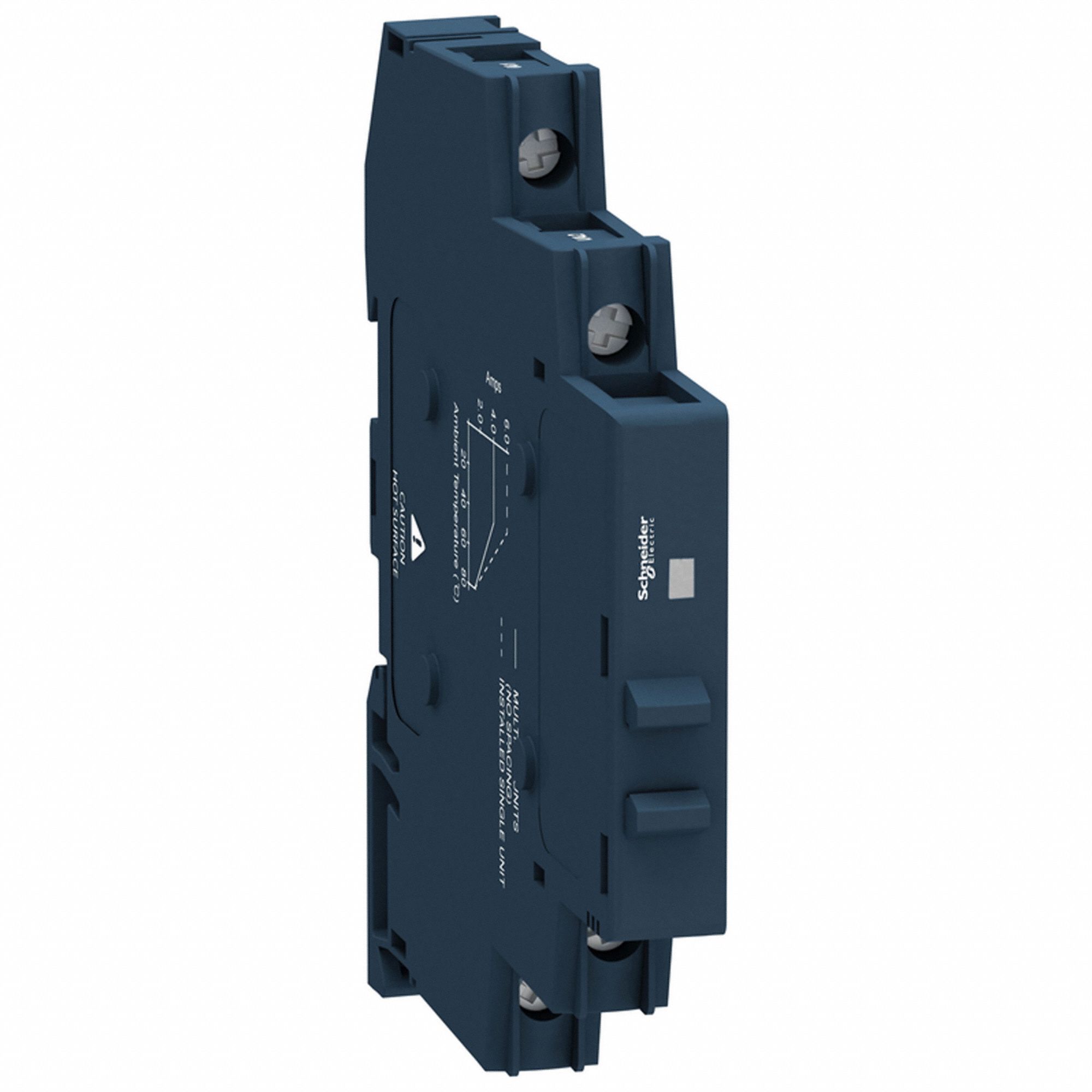

Schneider 3G-OTH-36647 — Technical Specifications

Name: Schneider 3G-OTH-36647 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 6 A Max Output Current, SCR, AC Output (MPN SSM1A16BD). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 8 to 11 mA; Maximum Output Current without Heat Sink: 6 A; Mounting Style: DIN Rail; Output Voltage: 24 to 280V AC.
Brand: Schneider

The SCHNEIDER Solid State Relay is a DIN-Rail Mounted relay (MPN SSM1A16BD) featuring a Form A switch configuration with an AC output voltage range of 24 to 280V AC. It operates with a DC input current of 8 to 11 mA and provides a maximum output current of 6 A without a heat sink. The relay includes a screw clamp electrical connection and is finger safe for enhanced safety.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	8 to 11 mA
Mounting Style	DIN Rail
Output Voltage	24 to 280V AC
Max Output Current	6 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1A16BD
Maximum Output Current Without Heat Sink	6 A
