Schneider 3G-OTH-36882 — Technical Specifications

Name: Schneider 3G-OTH-36882 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 6 A Max Output Current, SCR, AC Output (MPN SSM1A36BD). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 8 to 11 mA; Maximum Output Current without Heat Sink: 6 A; Mounting Style: DIN Rail; Output Voltage: 48 to 600V AC.
Brand: Schneider

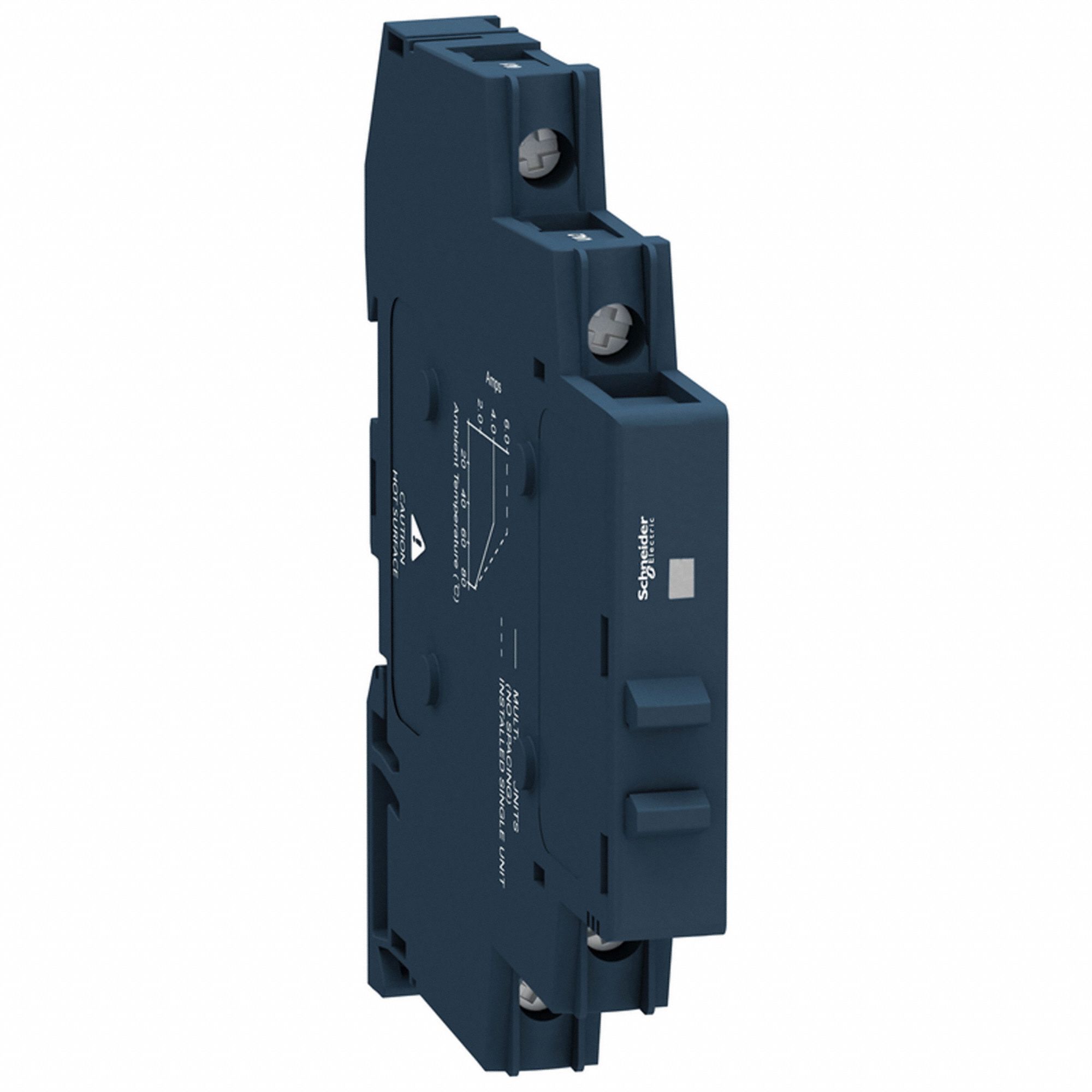

The SCHNEIDER Solid State Relay is a DIN-Rail Mounted relay with a Form A switch configuration and AC output. It features a DC input current of 8 to 11 mA, an output voltage range of 48 to 600V AC, and a maximum output current without heat sink of 6 A. This finger-safe relay uses a screw clamp electrical connection and is designed for DIN rail mounting.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	8 to 11 mA
Mounting Style	DIN Rail
Output Voltage	48 to 600V AC
Max Output Current	6 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1A36BD
Maximum Output Current Without Heat Sink	6 A
