Schneider 3G-OTH-36589 — Technical Specifications

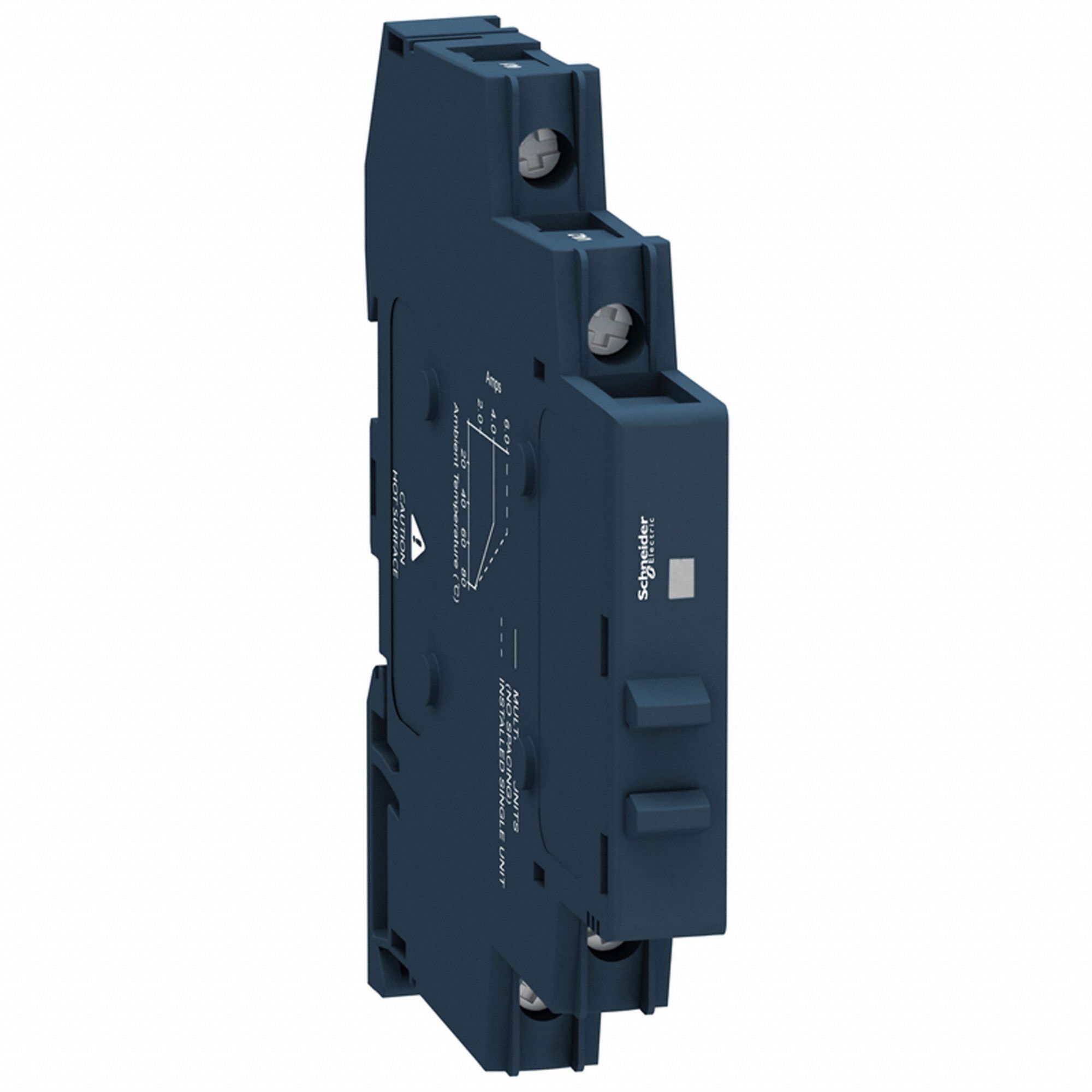

The SCHNEIDER Solid State Relay (MPN SSM1D26BD) is a DIN-Rail Mounted relay with a DC output voltage range of 1 to 60V DC and a maximum output current of 6 A without a heat sink. It features a Form A switch configuration, screw clamp electrical connection, and an input current of 8 to 11 mA. This finger-safe relay is designed for DC current applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | MOSFET, DC Output |
| Brand | SCHNEIDER |
| Finger Safe | Yes |
| Current Type | DC |
| Input Current | 8 to 11 mA |
| Mounting Style | DIN Rail |
| Output Voltage | 1 to 60V DC |
| Max Output Current | 6 A |
| Switch Configuration | Form A |
| Voltage/Current Type | DC Output |
| Electrical Connection | Screw Clamp |
| Manufacturer Part Number | SSM1D26BD |
| Maximum Output Current Without Heat Sink | 6 A |
