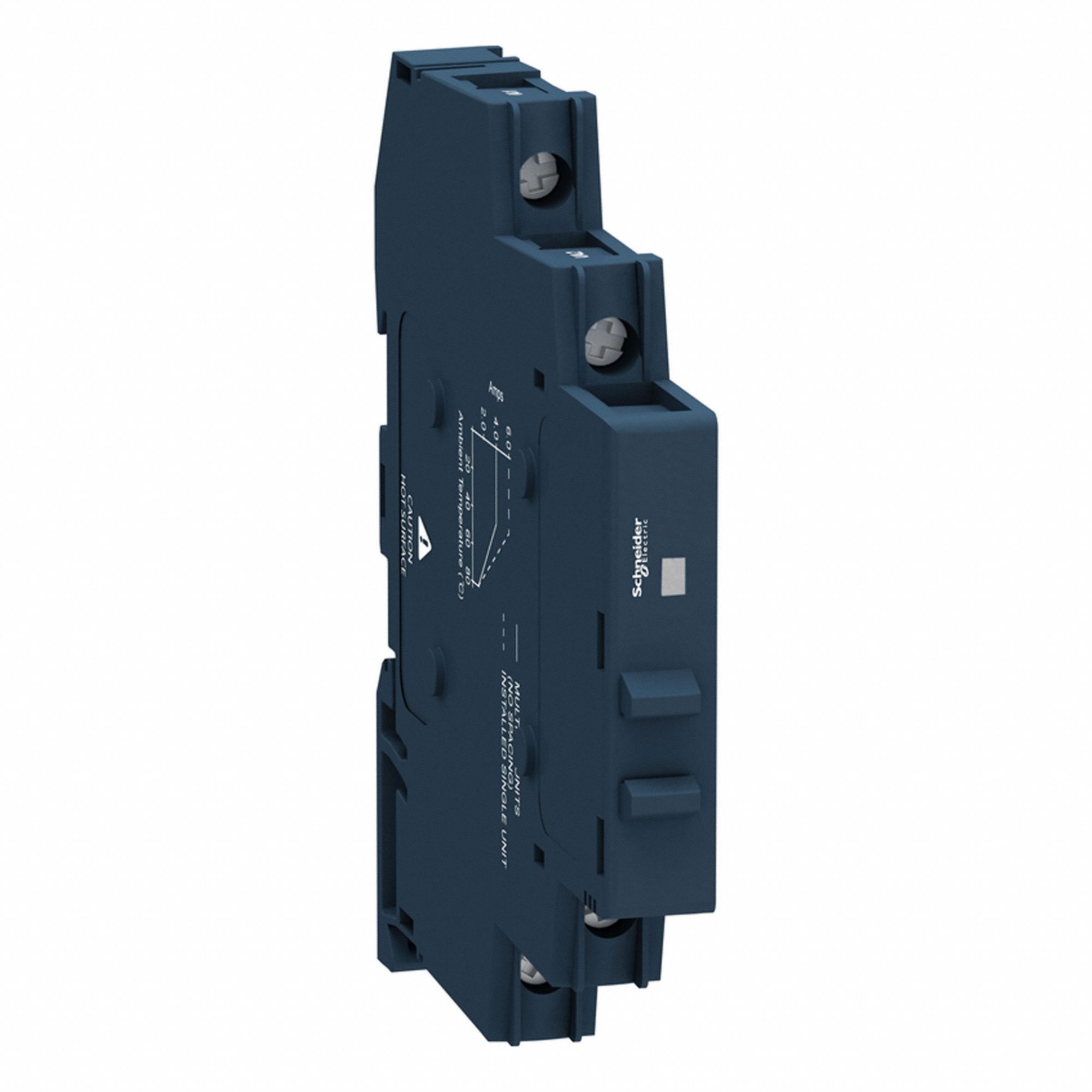

Schneider 3G-OTH-36578 — Technical Specifications

Name: Schneider 3G-OTH-36578 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 6 A Max Output Current, MOSFET, DC Output (MPN SSM1D36BD). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 8 to 11 mA; Maximum Output Current without Heat Sink: 6 A; Mounting Style: DIN Rail; Output Voltage: 1 to 100V DC.
Brand: Schneider

The SCHNEIDER Solid State Relay (MPN SSM1D36BD) is a DIN-Rail Mounted relay with a DC output, featuring a Form A switch configuration and MOSFET technology. It operates with an input current of 8 to 11 mA and provides an output voltage range of 1 to 100V DC. This finger-safe relay has a maximum output current of 6 A without a heat sink and uses screw clamp electrical connections.

View Product & Quote

Technical Specifications

Parameter	Value
Type	MOSFET, DC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	8 to 11 mA
Mounting Style	DIN Rail
Output Voltage	1 to 100V DC
Max Output Current	6 A
Switch Configuration	Form A
Voltage/Current Type	DC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1D36BD
Maximum Output Current Without Heat Sink	6 A
