Schneider 3G-OTH-39748 — Technical Specifications

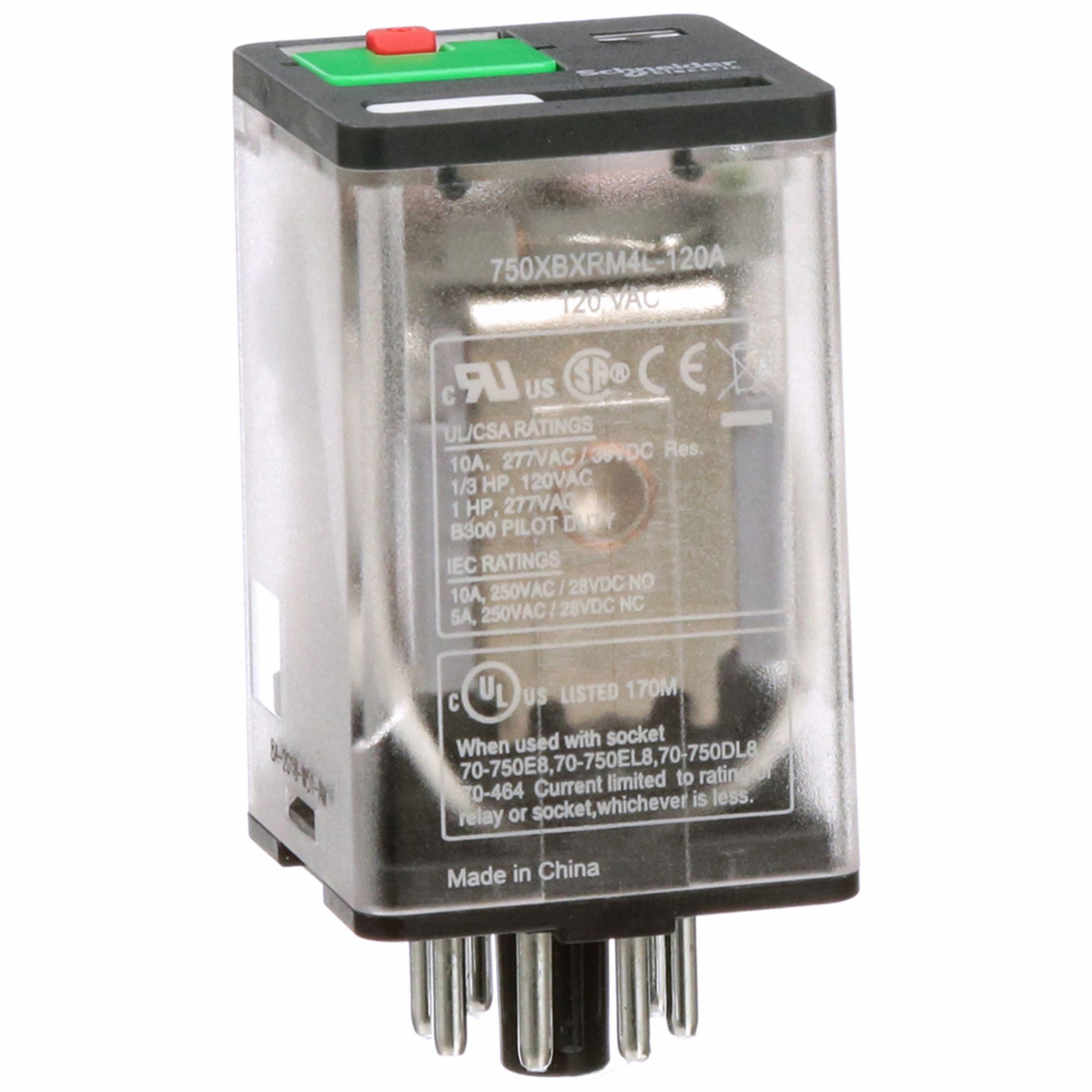

Name: Schneider 3G-OTH-39748 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, DPDT, A Socket (MPN 750XBXRM4L-120A). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Plug-In; Pin Shape: Round; Electrical Connection: 8-Pin Terminal; Manufacturer Part Number: 750XBXRM4L-120A; Operating Current: 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC); Series: 750R Series.
Brand: Schneider

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 750R Series, featuring an octal base with round pins and an 8-pin terminal electrical connection. It has a plug-in mounting style and an operating current of 5 A at 250V AC-1 (1 NC resistive load conforming to IEC). The relay is rated for 10 A at 120V AC with a DPDT contact configuration, and the manufacturer part number is 750XBXRM4L-120A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	DPDT, A Socket
Brand	SCHNEIDER
Series	750R Series
Base Type	Octal
Pin Shape	Round
Current Rating	10 A
Mounting Style	Plug-In
Operating Current	5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC)
Electrical Connection	8-Pin Terminal
Manufacturer Part Number	750XBXRM4L-120A
