Schneider 3G-OTH-38803 — Technical Specifications

Name: Schneider 3G-OTH-38803 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 3PDT, B Socket (MPN 750XCXRM4L-24D). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Plug-In; Pin Shape: Round; Electrical Connection: 11-Pin Terminal; Manufacturer Part Number: 750XCXRM4L-24D; Operating Current: 10 A at 277V AC (Resistive Load Conforming to UL); Series: 750R Series.
Brand: Schneider

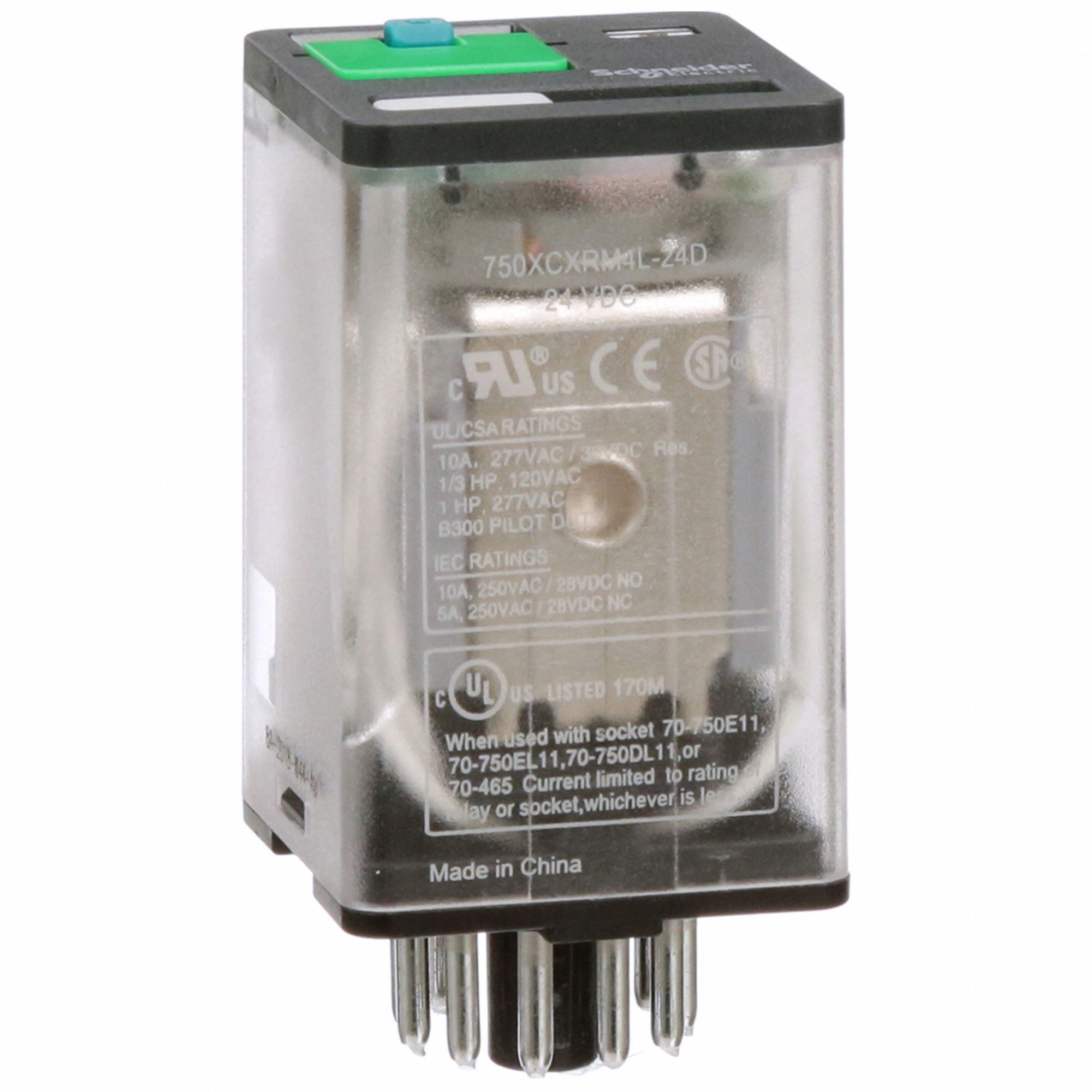

The SCHNEIDER 750R Series General Purpose Relay is a socket-mounted, plug-in relay with an octal base and round pins. It features a 3PDT contact configuration, an 11-pin terminal electrical connection, and an operating current of 10 A at 277V AC (resistive load conforming to UL). This relay is designed for 24V DC coil voltage and is identified by manufacturer part number 750XCXRM4L-24D.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	3PDT, B Socket
Brand	SCHNEIDER
Series	750R Series
Base Type	Octal
Pin Shape	Round
Current Rating	10 A
Mounting Style	Plug-In
Operating Current	10 A at 277V AC (Resistive Load Conforming to UL)
Electrical Connection	11-Pin Terminal
Manufacturer Part Number	750XCXRM4L-24D
