Schneider 3G-OTH-36869 — Technical Specifications

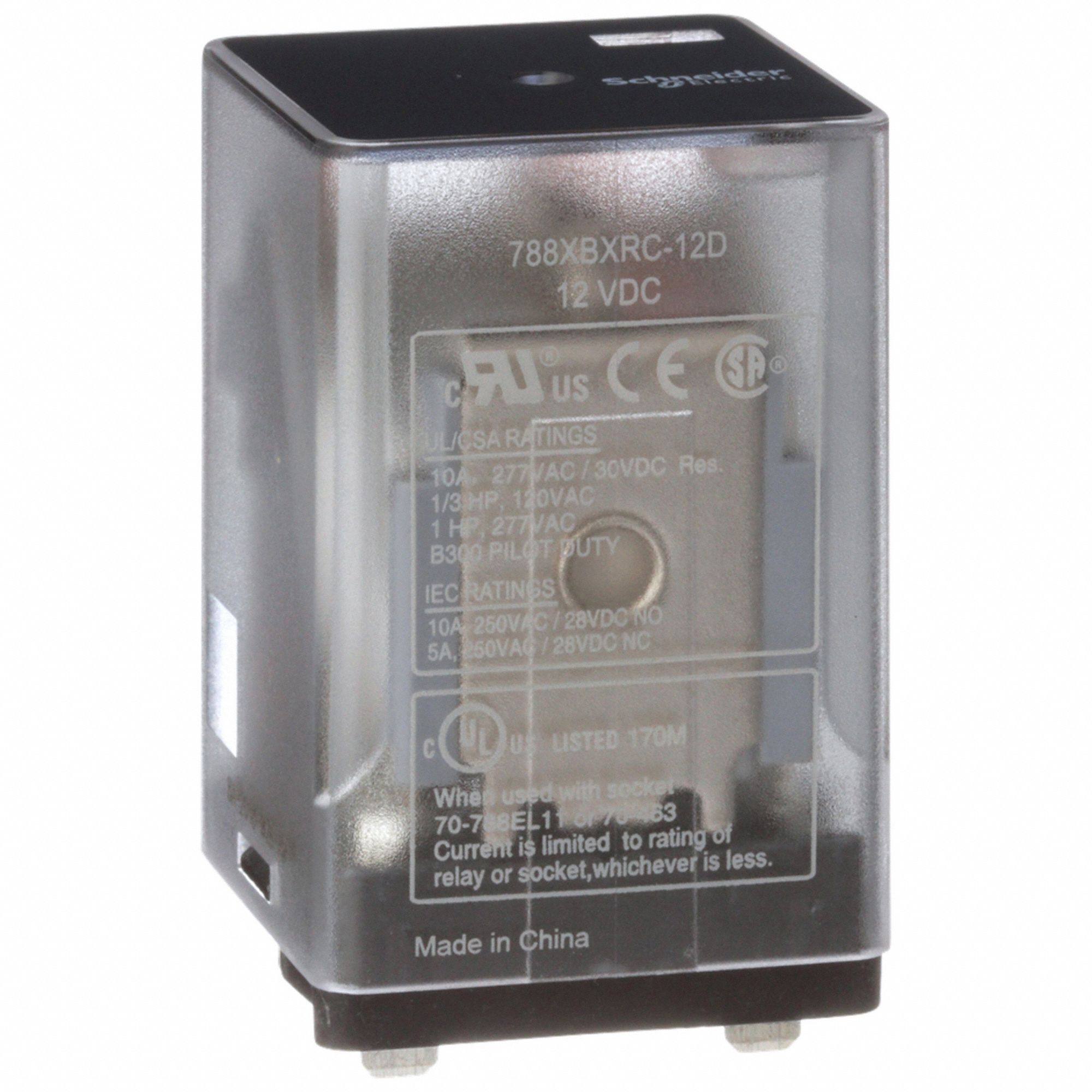

Name: Schneider 3G-OTH-36869 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, DPDT, 8 Pins/Terminals (MPN 788XBXRC-12D). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Blade Terminal; Manufacturer Part Number: 788XBXRC-12D; Operating Current: 10 A at 30V DC (Resistive Load Conforming to UL); Series: 788R Series.
Brand: Schneider

The SCHNEIDER 788R Series General Purpose Relay is a socket-mounted relay with a square base and plug-in mounting style. It features flat pins and blade terminal electrical connections, with an operating current of 10 A at 30V DC (resistive load conforming to UL). This DPDT relay has 8 pins/terminals and is identified by manufacturer part number 788XBXRC-12D.

View Product & Quote

Technical Specifications

Parameter	Value
DC	12V
Type	DPDT
Brand	SCHNEIDER
Series	788R Series
Base Type	Square
Pin Shape	Flat
Current Rating	10 A
Mounting Style	Plug-In
Pins/Terminals	8
Operating Current	10 A at 30V DC (Resistive Load Conforming to UL)
Electrical Connection	Blade Terminal
Manufacturer Part Number	788XBXRC-12D
