Schneider 3G-OTH-37389 — Technical Specifications

Name: Schneider 3G-OTH-37389 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V AC, DPDT, 8 Pins/Terminals (MPN 788XBXRM4L-24A). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Blade Terminal; Manufacturer Part Number: 788XBXRM4L-24A; Operating Current: 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC); Series: 788R Series.
Brand: Schneider

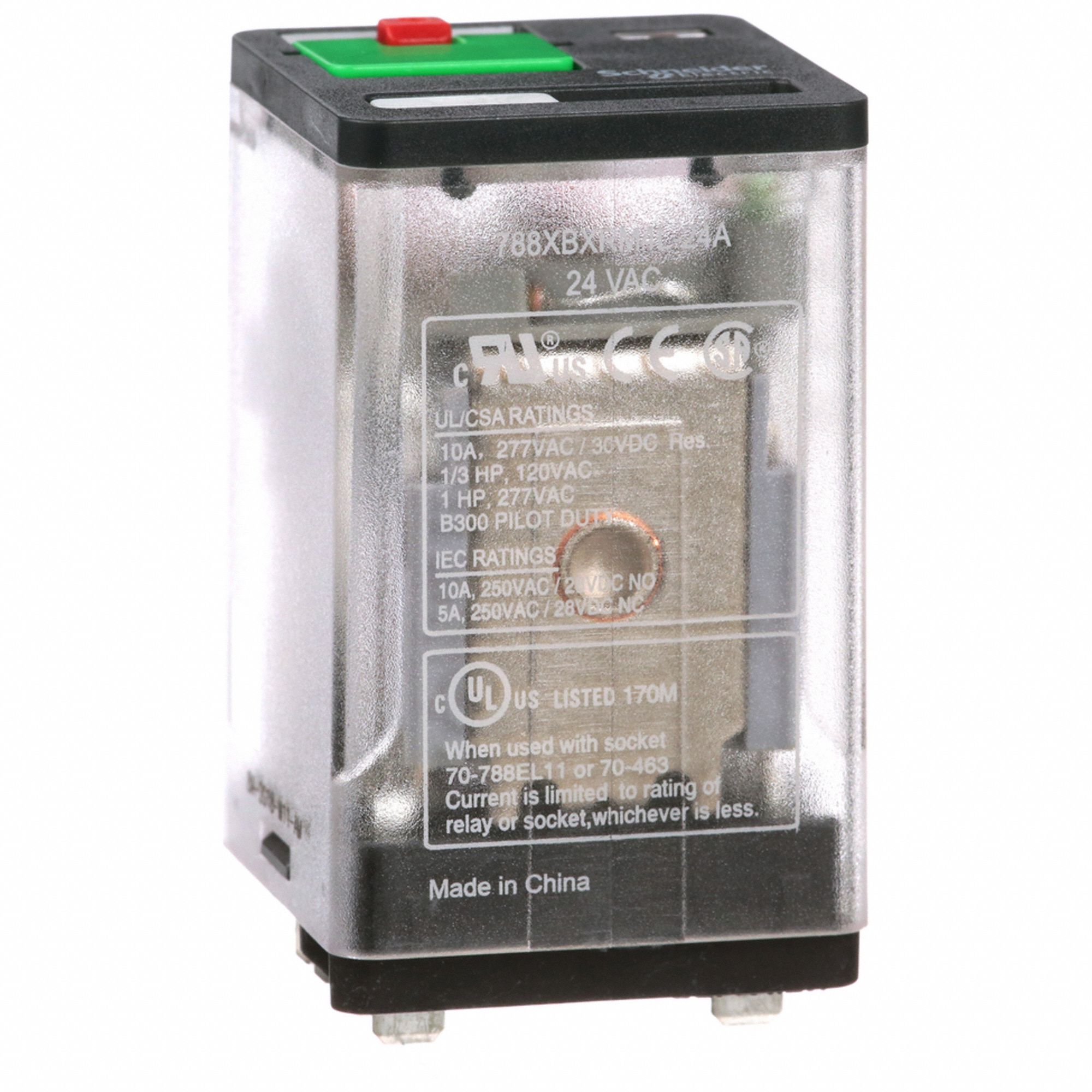

The SCHNEIDER 788R Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 24V AC coil, and an operating current of 5 A at 250V AC-1 (1 NC resistive load conforming to IEC). Electrical connection is via blade terminals, and the relay has an 8-pin/terminal layout.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	DPDT
Brand	SCHNEIDER
Series	788R Series
Base Type	Square
Pin Shape	Flat
Current Rating	10 A
Mounting Style	Plug-In
Pins/Terminals	8
Operating Current	5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC)
Electrical Connection	Blade Terminal
Manufacturer Part Number	788XBXRM4L-24A
