Schneider 3G-OTH-38630 — Technical Specifications

Name: Schneider 3G-OTH-38630 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals (MPN 788XBXRM4L-24D). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Blade Terminal; Manufacturer Part Number: 788XBXRM4L-24D; Operating Current: 10 A at 277V AC (Resistive Load Conforming to UL); Series: 788R Series.
Brand: Schneider

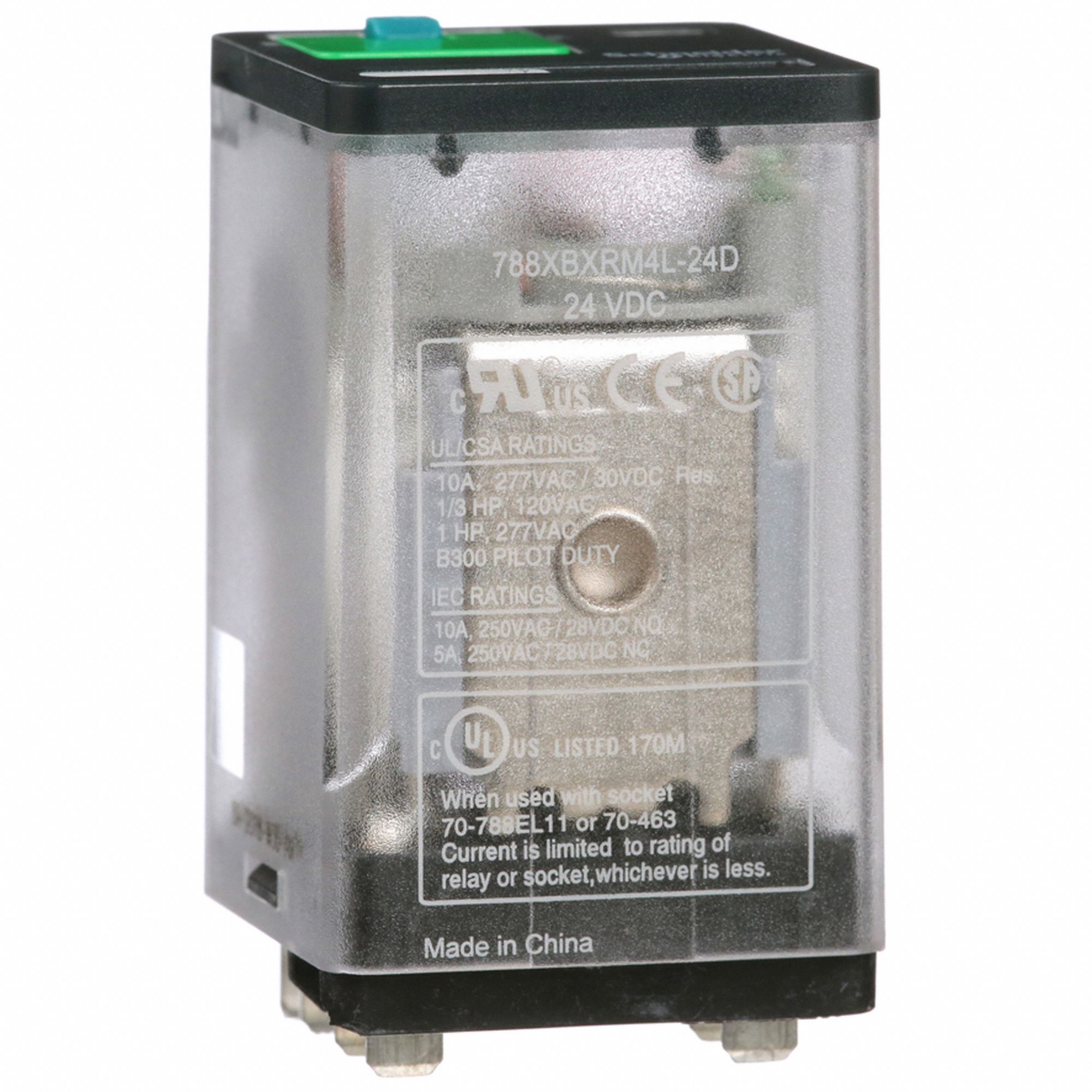

The SCHNEIDER 788R Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, an operating current of 10 A at 277V AC (resistive load conforming to UL), and a 24V DC coil. Electrical connection is via blade terminals, with the model number 788XBXRM4L-24D.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	DPDT
Brand	SCHNEIDER
Series	788R Series
Base Type	Square
Pin Shape	Flat
Current Rating	10 A
Mounting Style	Plug-In
Pins/Terminals	8
Operating Current	10 A at 277V AC (Resistive Load Conforming to UL)
Electrical Connection	Blade Terminal
Manufacturer Part Number	788XBXRM4L-24D
