Schneider 3G-OTH-43810 — Technical Specifications

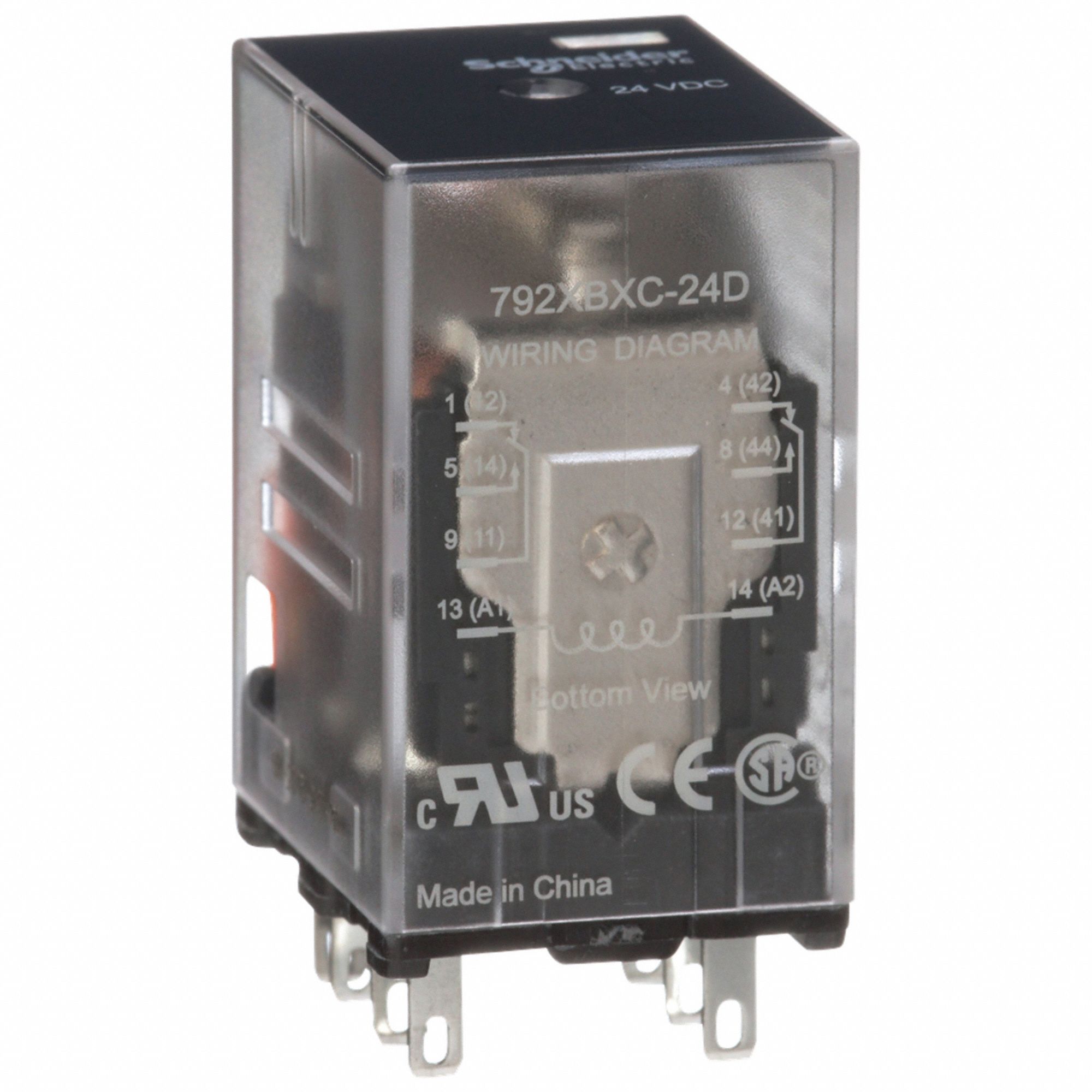

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 792 Series, featuring a square base and plug-in mounting style. It operates with a DPDT contact configuration, an operating current of 12 A at 120V AC (conforming to UL), and a 24V DC coil voltage. The relay uses Faston connectors for electrical connection and has 8 pins/terminals (MPN 792XBXC-24D).
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 24V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | 792 Series |
| Base Type | Square |
| Current Rating | 12 A |
| Mounting Style | Plug-In |
| Pins/Terminals | 8 |
| Operating Current | 12 A at 120V AC (Conforming to UL) |
| Electrical Connection | Faston Connector |
| Manufacturer Part Number | 792XBXC-24D |
