Schneider 3G-OTH-04415 — Technical Specifications

Name: Schneider 3G-OTH-04415 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, DPDT, Metallic (MPN 9001KS53BH2). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Momentary/Maintained/Momentary; Cam: C; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

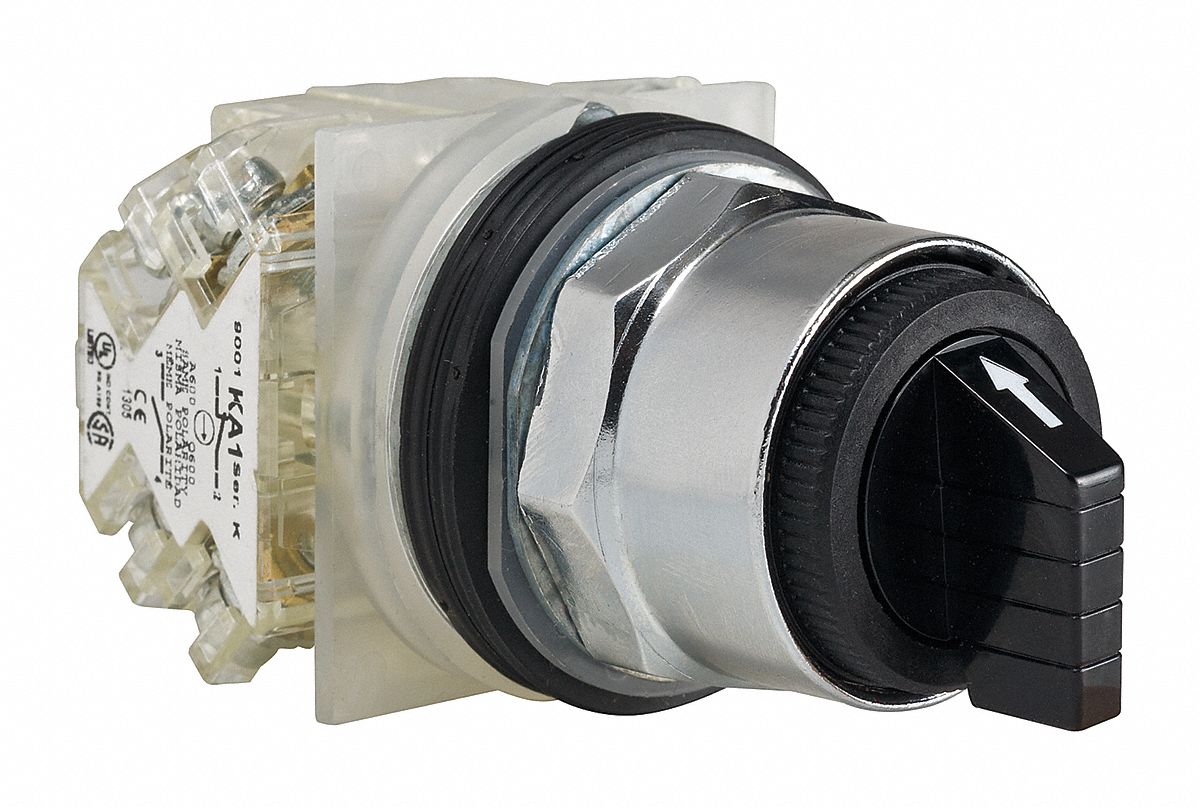

The SCHNEIDER 9001KS53BH2 is a 30 mm panel-mount selector switch from the 9001K series, featuring a short-handled knob operator head made of polycarbonate and a metallic bezel. It offers three positions with a momentary/off/momentary action (Cam C) and is non-illuminated. The switch is rated for 6 A at 120 V AC and 0.1 A at 600 V DC, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Short Lever, DPDT, Metallic
Brand	SCHNEIDER
Action	Momentary/Maintained/Momentary
Series	9001K
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001KS53BH2
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Momentary
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	Momentary
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
