Schneider 3G-OTH-36924 — Technical Specifications

Name: Schneider 3G-OTH-36924 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, DPDT, Metallic (MPN 9001KS53FBH2). Key specifications — AC Contact Rating: 3 A @ 240 V; Action: Momentary/Maintained/Momentary; Cam: C; DC Contact Rating: 0.27 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

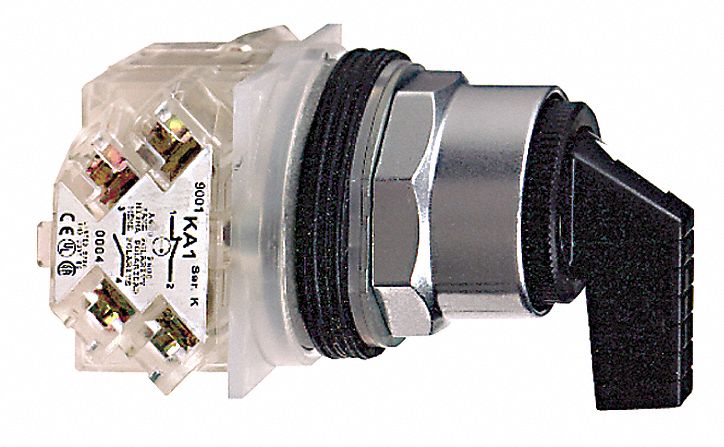

The SCHNEIDER 9001KS53FBH2 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a long-handled knob with a polycarbonate operator head and a metallic bezel. It offers a momentary/maintained/momentary action with three positions (momentary, off, momentary) and a Cam C configuration, rated at 3 A @ 240 V AC and 0.27 A @ 250 V DC. This non-illuminated switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Extended Lever, DPDT, Metallic
Brand	SCHNEIDER
Action	Momentary/Maintained/Momentary
Series	9001K
Positions	3
AC Contact Rating	3 A @ 240 V
DC Contact Rating	0.27 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001KS53FBH2
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Momentary
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	Momentary
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
