Schneider 3G-OTH-36958 — Technical Specifications

Name: Schneider 3G-OTH-36958 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, SPDT, Non-Metallic (MPN 9001SKS42BH1). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained/Maintained; Cam: B; DC Contact Rating: 0.55 A @125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

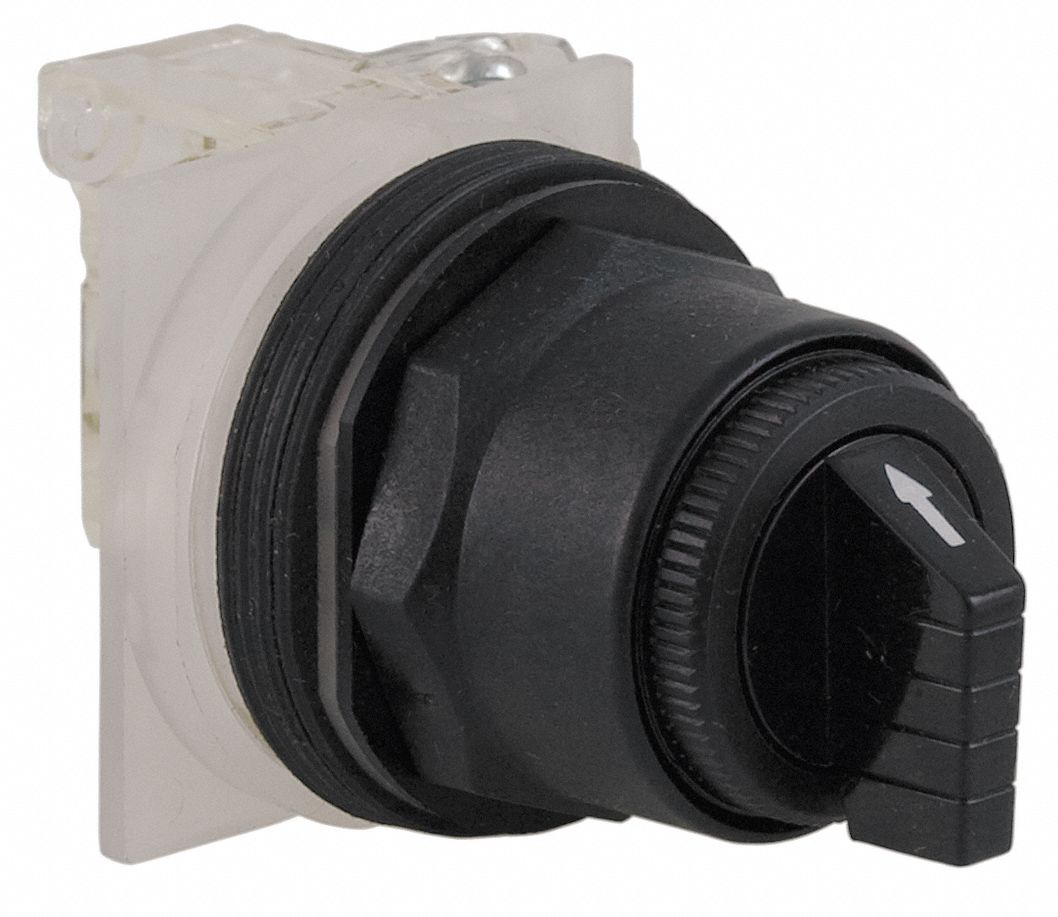

The SCHNEIDER 9001SKS42BH1 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a short-handled knob, non-illuminated polycarbonate operator head, and non-metallic bezel. It offers three maintained positions (On-Off-On) with a Cam B action, rated at 6 A @ 120 V AC and 0.55 A @ 125 V DC, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	B
Type	Short Lever, SPDT, Non-Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.55 A @125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS42BH1
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
