Schneider 3G-OTH-20921 — Technical Specifications

Name: Schneider 3G-OTH-20921 SCHNEIDER IEC Supplementary Protector: 32 A Amps, 14kA at 240V AC, Screw Clamp, C60SP, C (MPN M9F22232). Key specifications — Terminal Connection: Screw Clamp; AC Voltage Rating: 240/415/440V AC; Curve Type: C; DC Voltage Rating: Not Rated; Max. AIR Rating: 14kA at 240V AC; Series: C60SP; Brand: SCHNEIDER.
Brand: Schneider

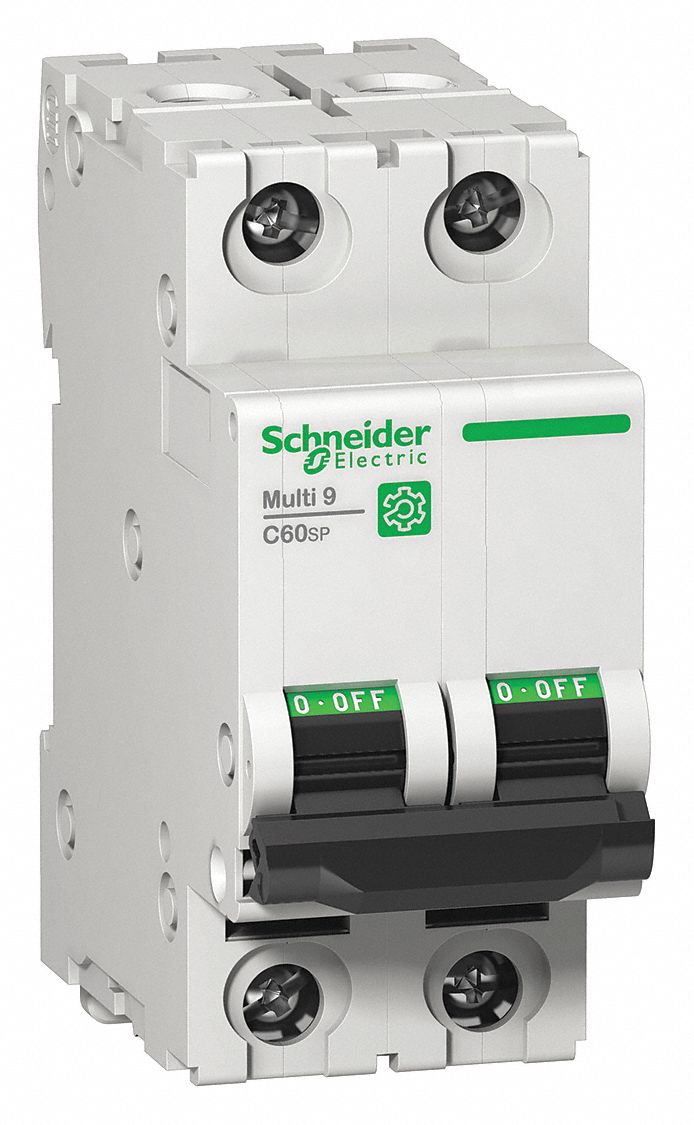

The SCHNEIDER IEC Supplementary Protector is a C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 32 A Amps. Part of the C60SP series (MPN M9F22232), it features a Max. AIR Rating of 14kA at 240V AC and AC Voltage Ratings of 240/415/440V AC. The unit uses a Screw Clamp terminal connection and is not rated for DC voltage.

View Product & Quote

Technical Specifications

Parameter	Value
Type	14kA at 240V AC, Screw Clamp, C60SP, C
Brand	SCHNEIDER
Series	C60SP
Curve Type	C
Max. AIR Rating	14kA at 240V AC
AC Voltage Rating	240/415/440V AC
DC Voltage Rating	Not Rated
Terminal Connection	Screw Clamp
Manufacturer Part Number	M9F22232
