Schneider 3G-OTH-43763 — Technical Specifications

Name: Schneider 3G-OTH-43763 SCHNEIDER Relay: Socket Mounted, 15 A Current Rating, 24V DC, 3PDT, 11 Pins/Terminals, E Socket (MPN 8501RSD43P14V53). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Socket; Pin Shape: Flat; Electrical Connection: Quick-Connect; Manufacturer Part Number: 8501RSD43P14V53; Series: Square D 8501R Miniature Series.
Brand: Schneider

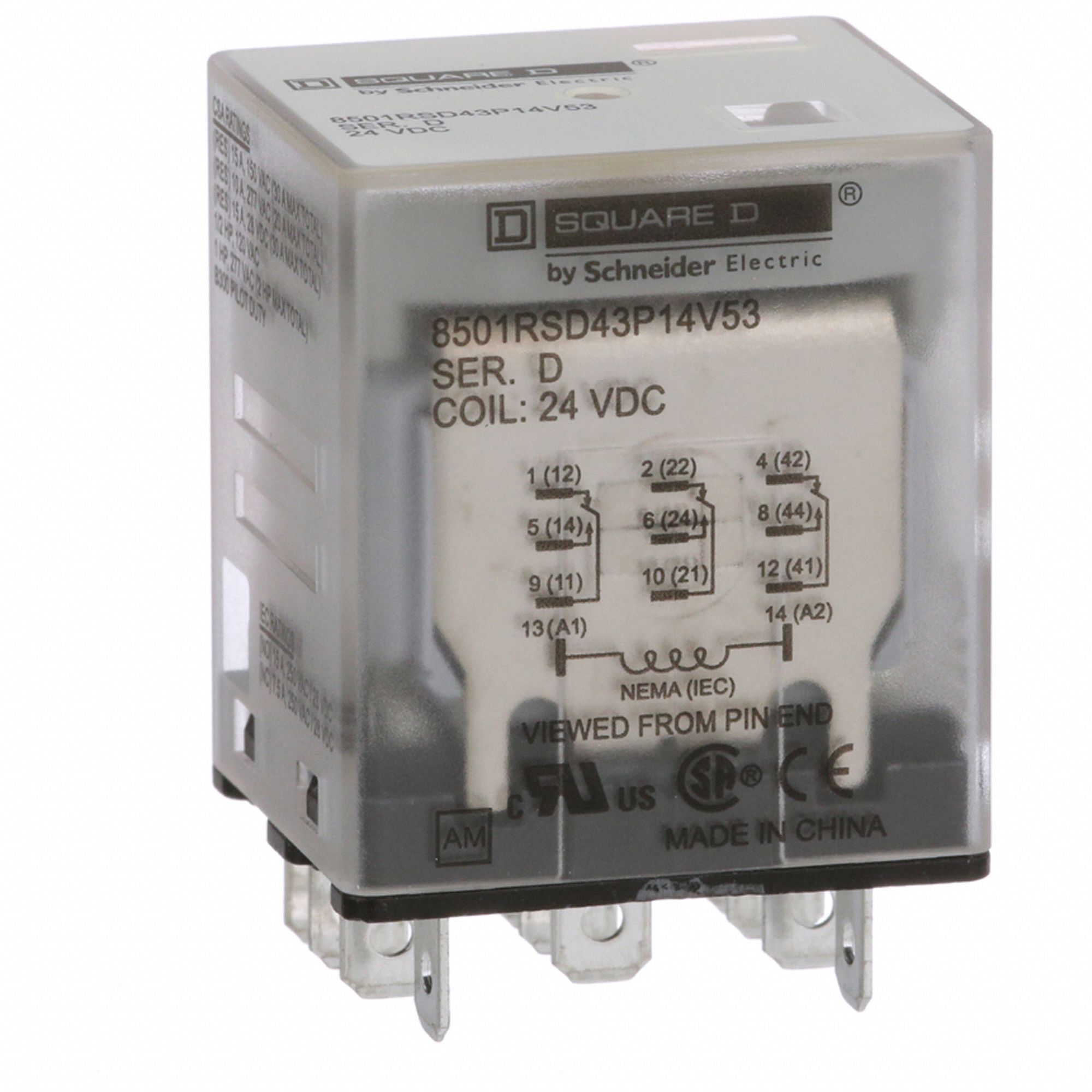

The SCHNEIDER Relay: Socket Mounted is a socket-mounted relay from the Square D 8501R Miniature Series, featuring a 15 A current rating, 24V DC coil voltage, and 3PDT contact configuration with 11 pins/terminals. It has a square base, flat pin shape, and quick-connect electrical connection, designed for socket mounting.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	3PDT, E Socket
Brand	SCHNEIDER
Series	Square D 8501R Miniature Series
Base Type	Square
Pin Shape	Flat
Current Rating	15 A
Mounting Style	Socket
Pins/Terminals	11
Electrical Connection	Quick-Connect
Manufacturer Part Number	8501RSD43P14V53
