Schneider 3G-OTH-34424 — Technical Specifications

Name: Schneider 3G-OTH-34424 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NO/1NC, Metallic (MPN XB4FK134G5). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Schneider

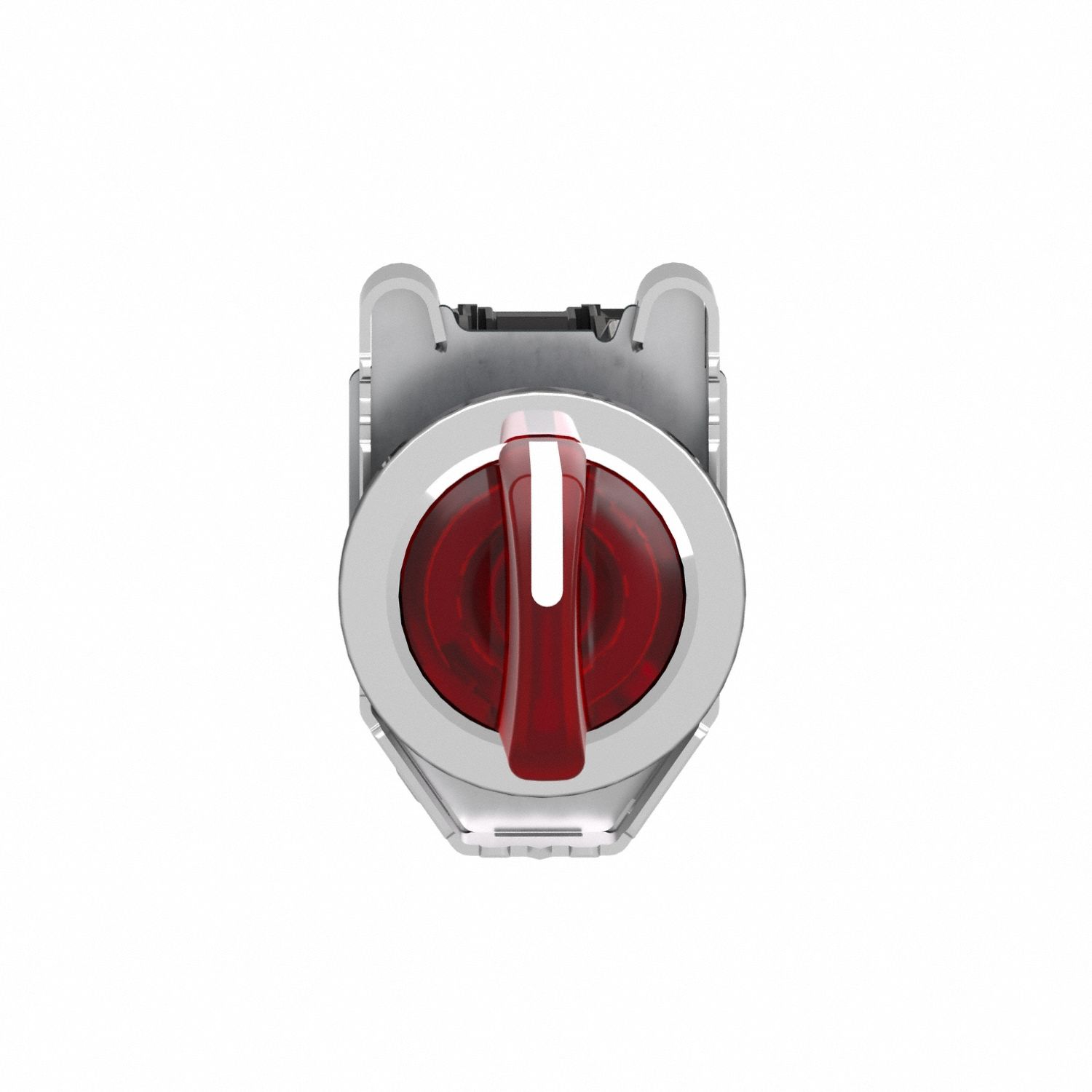

The SCHNEIDER XB4FK134G5 is a 30 mm panel-mount illuminated selector switch from the XB4 series, featuring a short-handled knob, metallic bezel, and plastic operator head. It offers three maintained positions (On/Off/On) with no cam included, and is rated for AC contacts at 6 A @ 120 V and DC contacts at 0.1 A @ 600 V. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO/1NC, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	XB4
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4FK134G5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
