Schneider 3G-OTH-34255 — Technical Specifications

Name: Schneider 3G-OTH-34255 SCHNEIDER Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO/1NC, Metallic (MPN XB4BK125B5). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Schneider

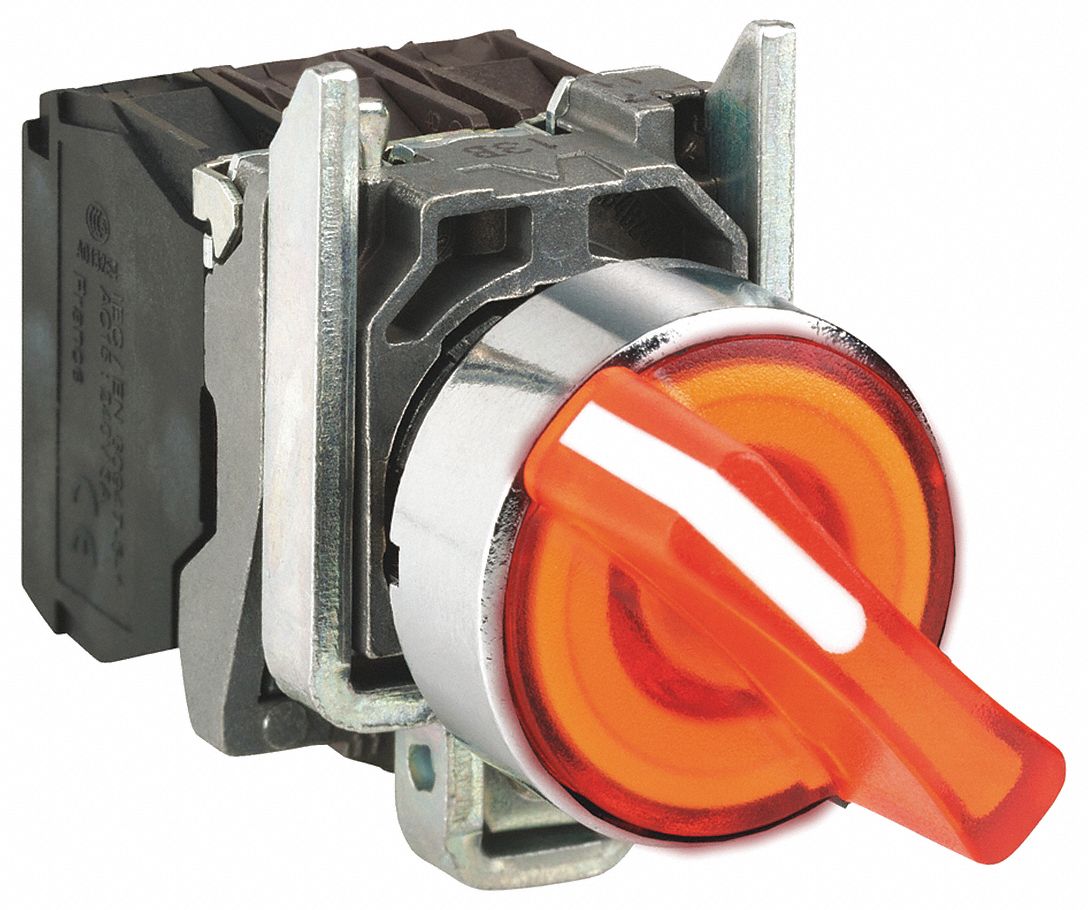

The SCHNEIDER XB4BK125B5 is an illuminated selector switch from the XB4 series, featuring a 22 mm panel mounting size with a short-handled knob and metallic bezel. It offers a maintained/maintained action across two positions (Off/On) and is rated for 6 A at 120 V AC and 0.1 A at 600 V DC. The plastic operator head is illuminated, and no cam is included.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO/1NC, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	XB4
Positions	2
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4BK125B5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
