Schneider 3G-OTH-35288 — Technical Specifications

Name: Schneider 3G-OTH-35288 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NO/1NC (MPN XB5FK135B5). Key specifications — AC Contact Rating: 1.2 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Schneider

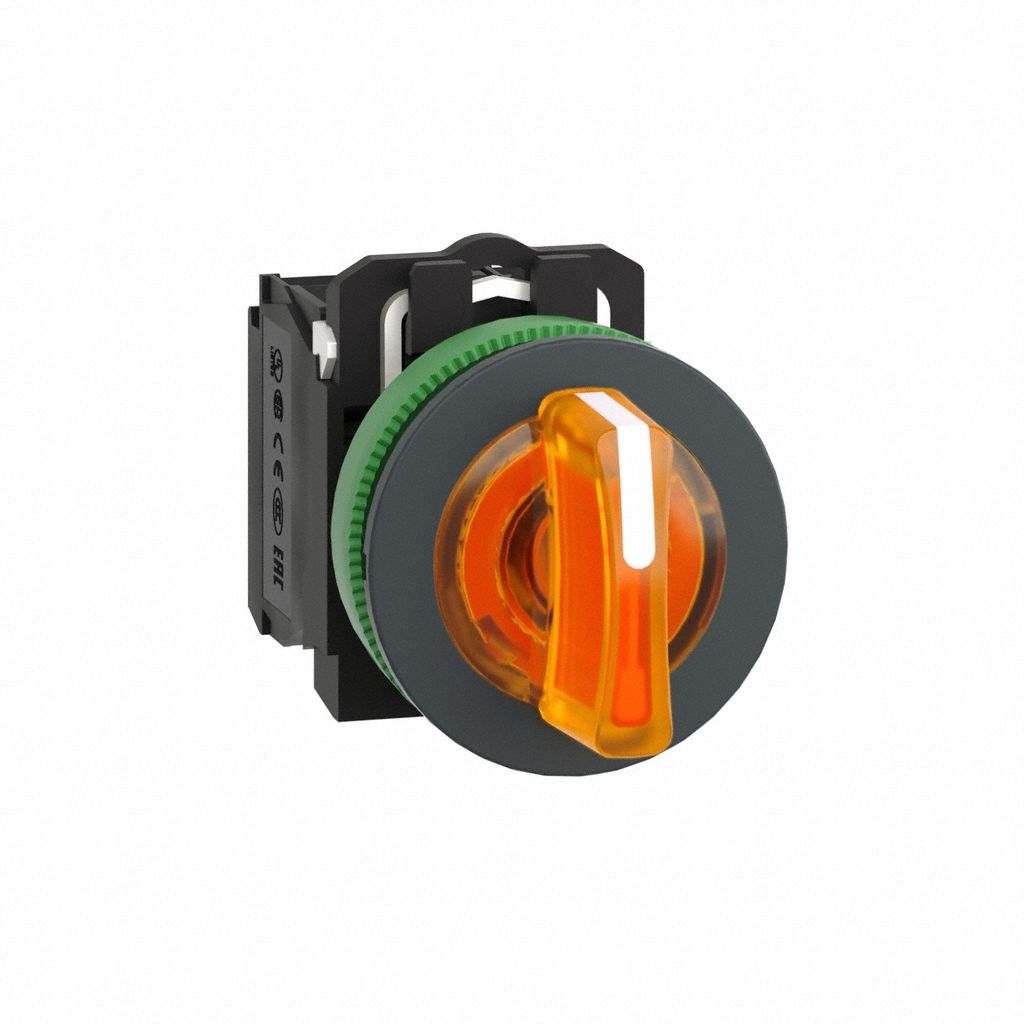

The SCHNEIDER XB5FK135B5 is a 30 mm panel-mount illuminated selector switch from the XB5 series, featuring a short-handled knob operator head and plastic construction. It offers three maintained positions (On/Off/On) with AC contact rating of 1.2 A @ 600 V and DC contact rating of 0.1 A @ 600 V, and includes no cam.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO/1NC
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	XB5
Positions	3
AC Contact Rating	1.2 A @ 600 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB5FK135B5
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
