Schneider 3G-OTH-37747 — Technical Specifications

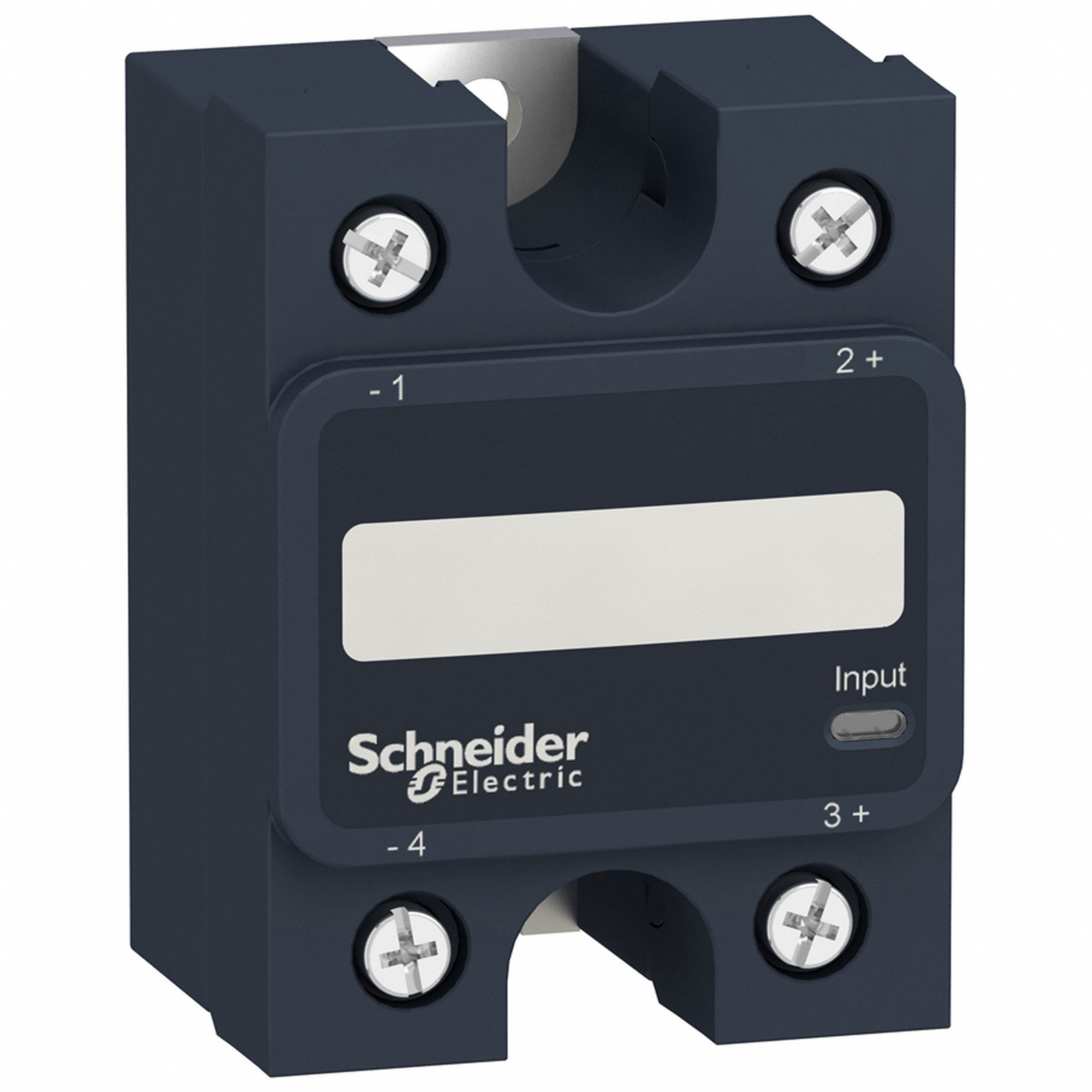

The SCHNEIDER Solid State Relay is a panel-mounted, surface-mounted relay with a DC output. It features a MOSFET output, a maximum output current of 25 A, and an output voltage range of 1 to 150V DC. The relay has a screw clamp electrical connection, is finger safe, and requires an input current of 10 to 15 mA. Note that operation without a heat sink is not recommended.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | MOSFET, DC Output |
| Brand | SCHNEIDER |
| Finger Safe | Yes |
| Current Type | DC |
| Input Current | 10 to 15 mA |
| Mounting Style | Panel |
| Output Voltage | 1 to 150V DC |
| Max Output Current | 25 A |
| Voltage/Current Type | DC Output |
| Electrical Connection | Screw Clamp |
| Manufacturer Part Number | SSP1D425BD |
| Maximum Output Current Without Heat Sink | Not Recommended |
