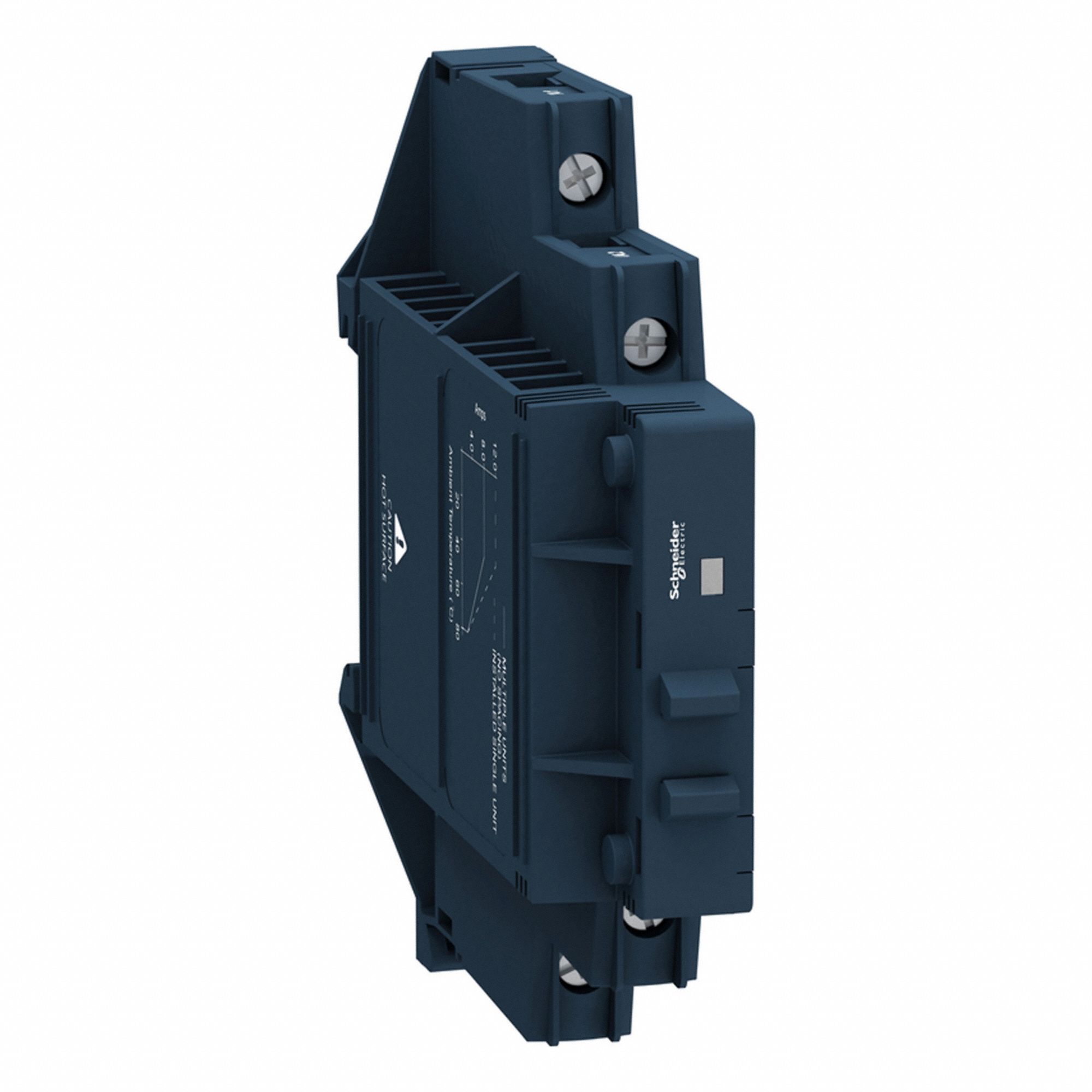

Schneider 3G-OTH-36768 — Technical Specifications

Name: Schneider 3G-OTH-36768 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 12 A Max Output Current, SCR, AC Output (MPN SSM1A312BDR). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 9 to 11 mA; Maximum Output Current without Heat Sink: 12 A; Mounting Style: DIN Rail; Output Voltage: 48 to 600V AC.
Brand: Schneider

The SCHNEIDER Solid State Relay (MPN SSM1A312BDR) is a DIN-Rail Mounted relay with a Form A switch configuration and AC output. It features a DC input current of 9 to 11 mA, an output voltage range of 48 to 600V AC, and a maximum output current without heat sink of 12 A. This finger-safe relay uses a screw clamp electrical connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	9 to 11 mA
Mounting Style	DIN Rail
Output Voltage	48 to 600V AC
Max Output Current	12 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1A312BDR
Maximum Output Current Without Heat Sink	12 A
