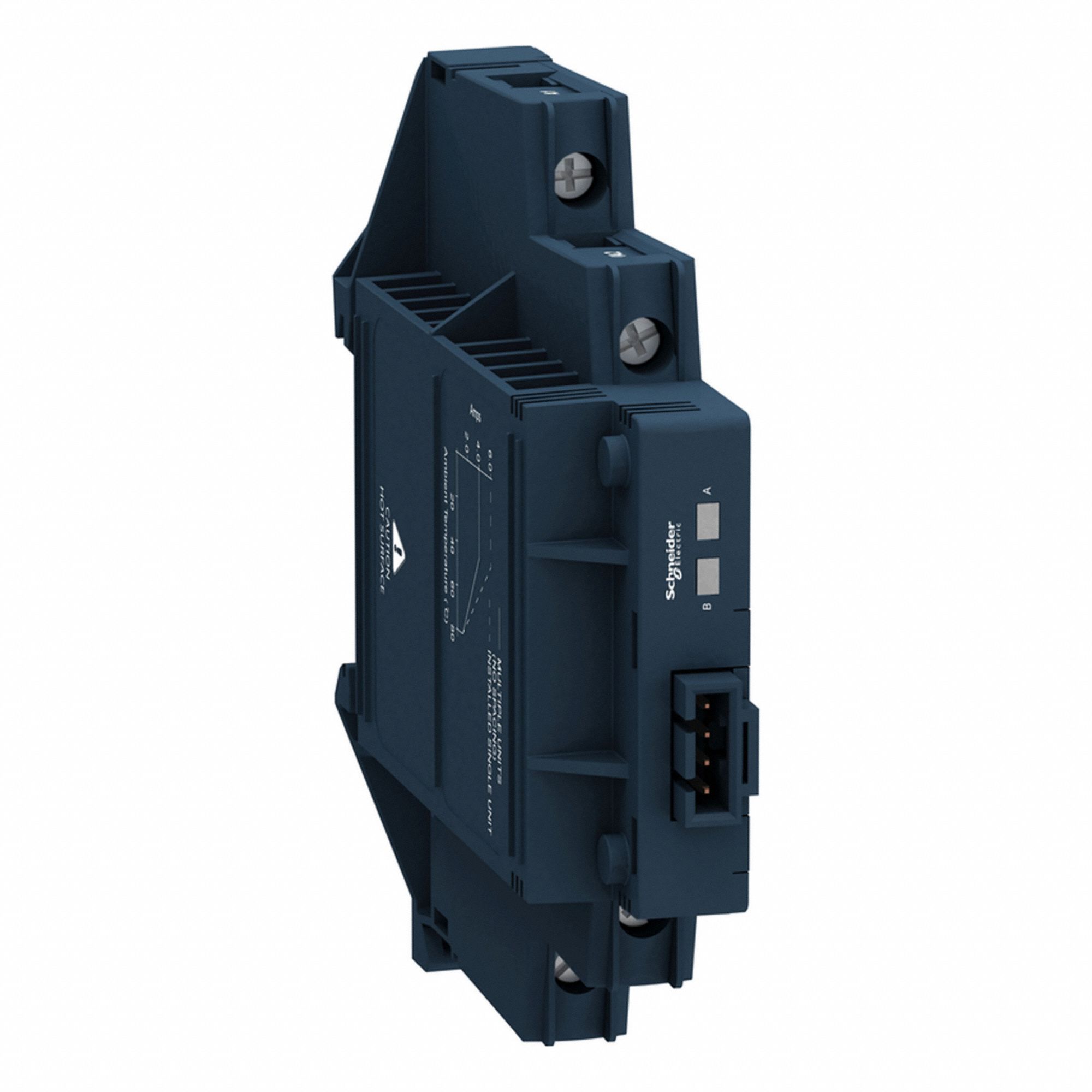

Schneider 3G-OTH-36901 — Technical Specifications

Name: Schneider 3G-OTH-36901 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 6 A Max Output Current, SCR, AC Output (MPN SSM2A16BDR). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 14 to 16.87 mA; Maximum Output Current without Heat Sink: 6 A; Mounting Style: DIN Rail; Output Voltage: 24 to 280V AC.
Brand: Schneider

The SCHNEIDER Solid State Relay is a DIN-Rail Mounted relay with a Form A switch configuration and SCR output. It features a DC input current of 14 to 16.87 mA and an AC output voltage of 24 to 280V AC, with a maximum output current of 6 A without a heat sink. The relay is finger safe and uses a screw clamp electrical connection.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	14 to 16.87 mA
Mounting Style	DIN Rail
Output Voltage	24 to 280V AC
Max Output Current	6 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM2A16BDR
Maximum Output Current Without Heat Sink	6 A
