Schneider 3G-OTH-39554 — Technical Specifications

Name: Schneider 3G-OTH-39554 SCHNEIDER Solid State Relay: Surface Mounted, 125 A Max Output Current, SCR, AC Output (MPN SSP1A4125M7T). Key specifications — Brand: SCHNEIDER; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 5 to 10 mA; Maximum Output Current without Heat Sink: Not Recommended; Mounting Style: Through Panel; Output Voltage: 48 to 660V AC.
Brand: Schneider

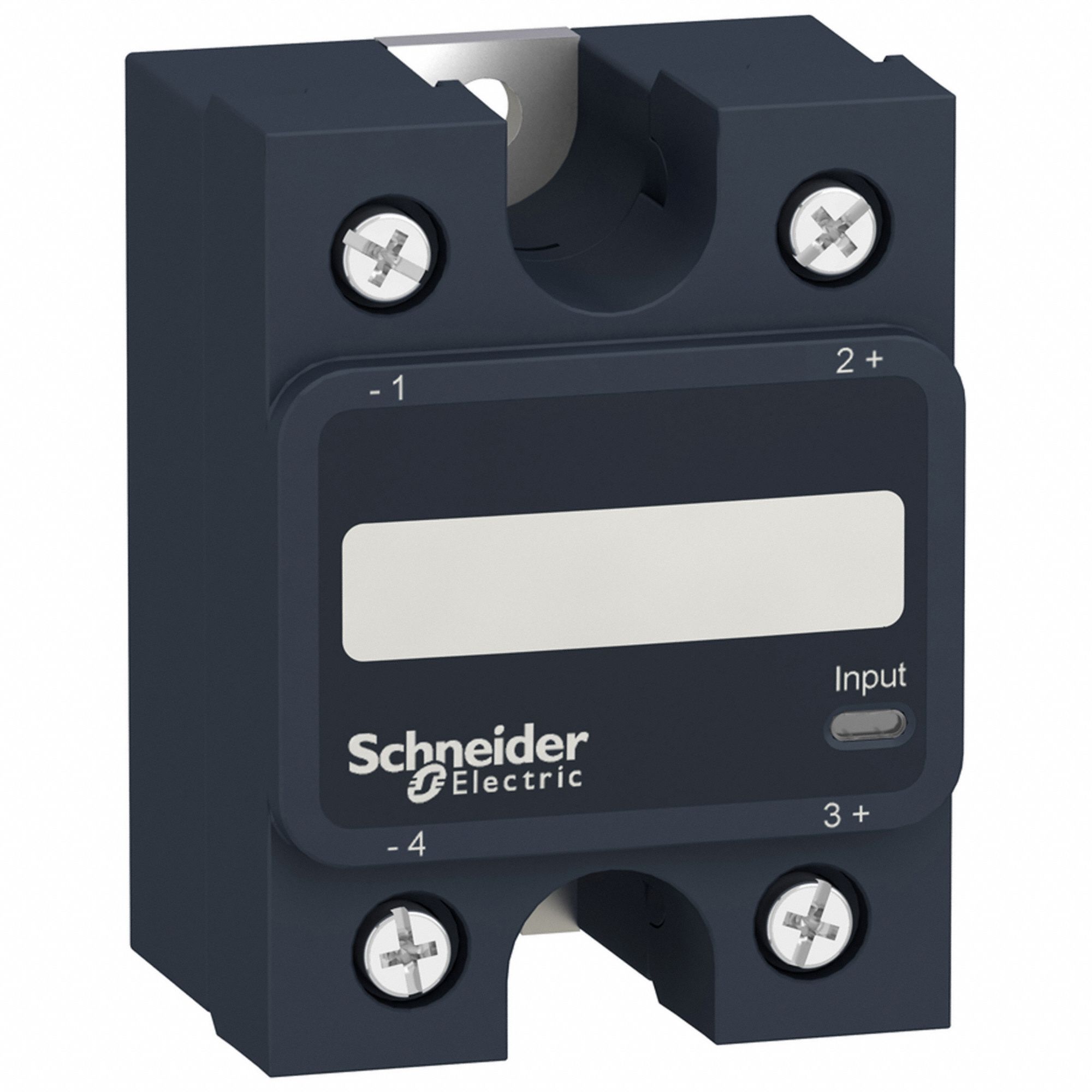

The SCHNEIDER Solid State Relay (SKU 55WN11, MPN SSP1A4125M7T) is a surface-mounted, through-panel relay with an AC output. It features a screw clamp electrical connection, is finger safe, and operates with an input current of 5 to 10 mA and an output voltage of 48 to 660V AC. The maximum output current is 125 A, though operation without a heat sink is not recommended.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	AC
Input Current	5 to 10 mA
Mounting Style	Through Panel
Output Voltage	48 to 660V AC
Max Output Current	125 A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSP1A4125M7T
Maximum Output Current Without Heat Sink	Not Recommended
