Schneider 3G-OTH-36630 — Technical Specifications

Name: Schneider 3G-OTH-36630 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, DPDT, Non-Metallic (MPN 9001SKS43FBH2). Key specifications — AC Contact Rating: 3 A @ 240 V; Action: Maintained/Maintained/Maintained; Cam: C; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

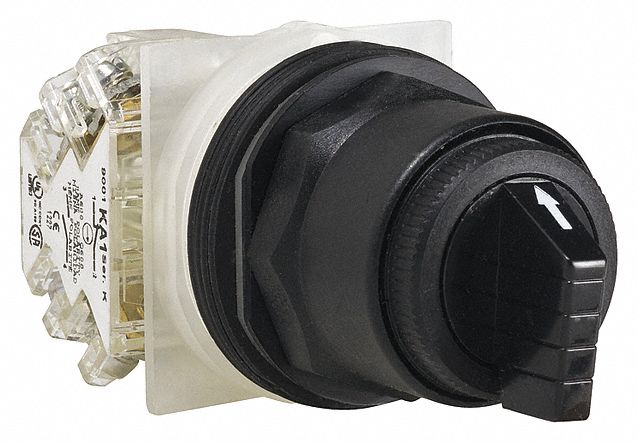

The SCHNEIDER 9001SKS43FBH2 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a short-handled knob, non-illuminated polycarbonate operator head, and non-metallic bezel. It offers three maintained positions (On/Off/On) with a DPDT contact configuration, Cam C, and AC contact rating of 3 A @ 240 V with DC contact rating of 0.1 A @ 600 V. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Short Lever, DPDT, Non-Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	3 A @ 240 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS43FBH2
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
