Schneider 3G-OTH-35344 — Technical Specifications

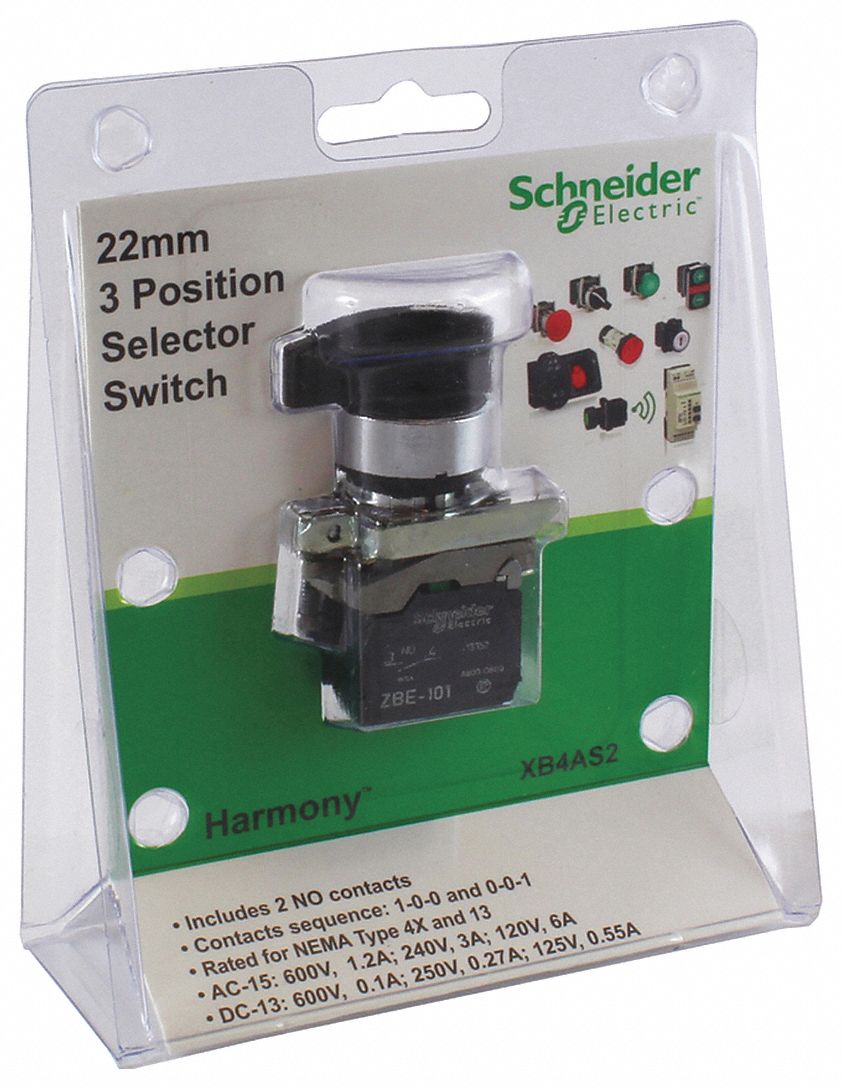

The SCHNEIDER Selector Switch (SKU 55WU02, MPN XB4AS2) is a 22 mm panel-mounting selector switch from the XB4 series. It features a long-handled knob with a plastic operator head, metallic bezel, and maintained/maintained action with Off/On functions. Key specs include an AC contact rating of 6 A @ 120 V and a DC contact rating of 0.1 A @ 600 V, with no cam included and non-illuminated operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Cam | No Cam Included |
| Type | Extended Lever, 2NO, Metallic |
| Brand | SCHNEIDER |
| Action | Maintained/Maintained |
| Series | XB4 |
| Positions | 3 |
| AC Contact Rating | 6 A @ 120 V |
| DC Contact Rating | 0.1 A @ 600 V |
| Operator Head Type | Long-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Plastic |
| Manufacturer Part Number | XB4AS2 |
| Switch Bezel Material Type | Metallic |
| Switch Function @ 1st Position | Off |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
