Schneider 3G-OTH-36420 — Technical Specifications

Name: Schneider 3G-OTH-36420 SCHNEIDER Selector Switch: 16 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO/1NC (MPN XB6DD221B). Key specifications — AC Contact Rating: 3 A @ 120 V; Action: Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.22 A @ 125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

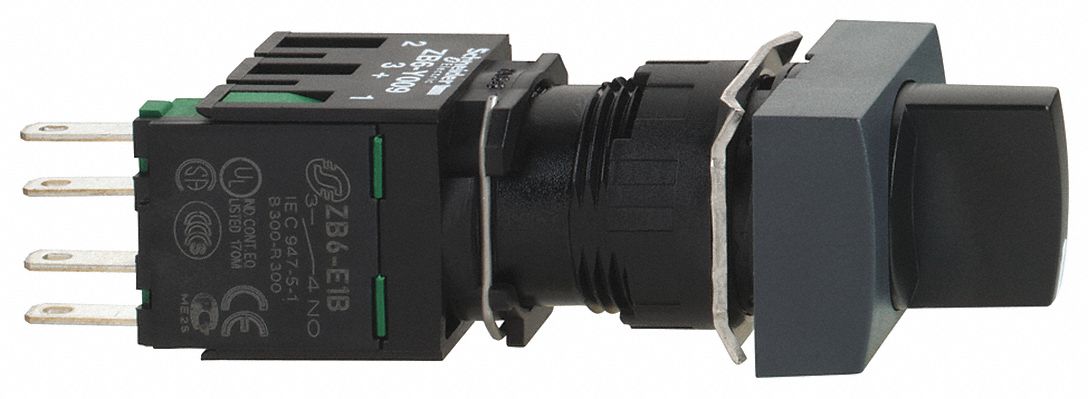

The SCHNEIDER XB6DD221B is a non-illuminated, short-handled knob selector switch with a 16 mm panel mounting size and a maintained/maintained action. It features a plastic operator head and non-metallic bezel, with two positions (Off/On) and no cam included. Its AC contact rating is 3 A @ 120 V, and its DC contact rating is 0.22 A @ 125 V.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO/1NC
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	XB6
Positions	2
AC Contact Rating	3 A @ 120 V
DC Contact Rating	0.22 A @ 125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB6DD221B
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
