Schneider 3G-OTH-36803 — Technical Specifications

Name: Schneider 3G-OTH-36803 SCHNEIDER Selector Switch: 16 mm Panel Mounting Size, 2 Positions, Short Lever, DPDT, Non-Metallic (MPN XB6ECD222P). Key specifications — AC Contact Rating: 1.5 A @ 120 V; Action: Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.2 A @ 125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

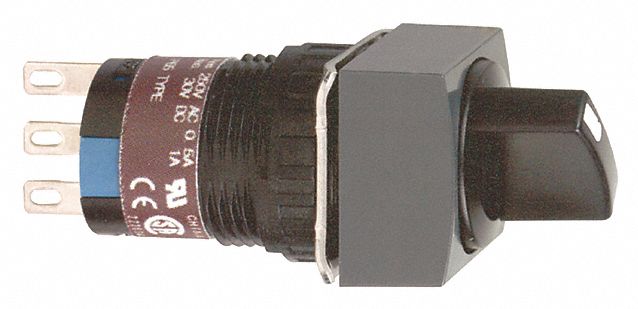

The SCHNEIDER XB6ECD222P is a 16 mm panel-mounting selector switch from the XB6E series, featuring a short-handled knob, non-illuminated plastic operator head, and non-metallic bezel. It offers a maintained/maintained action with two positions (Off/On) and DPDT contacts, rated at 1.5 A @ 120 V AC and 0.2 A @ 125 V DC. This switch is not rated for hazardous locations and includes no cam.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, DPDT, Non-Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	XB6E
Positions	2
AC Contact Rating	1.5 A @ 120 V
DC Contact Rating	0.2 A @ 125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB6ECD222P
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
