Schneider 3G-OTH-36261 — Technical Specifications

Name: Schneider 3G-OTH-36261 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, DPDT, Metallic (MPN 9001KS11FBH2). Key specifications — AC Contact Rating: 3 A @ 240 V; Action: Maintained/Maintained; Cam: E; DC Contact Rating: 0.55 A @125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

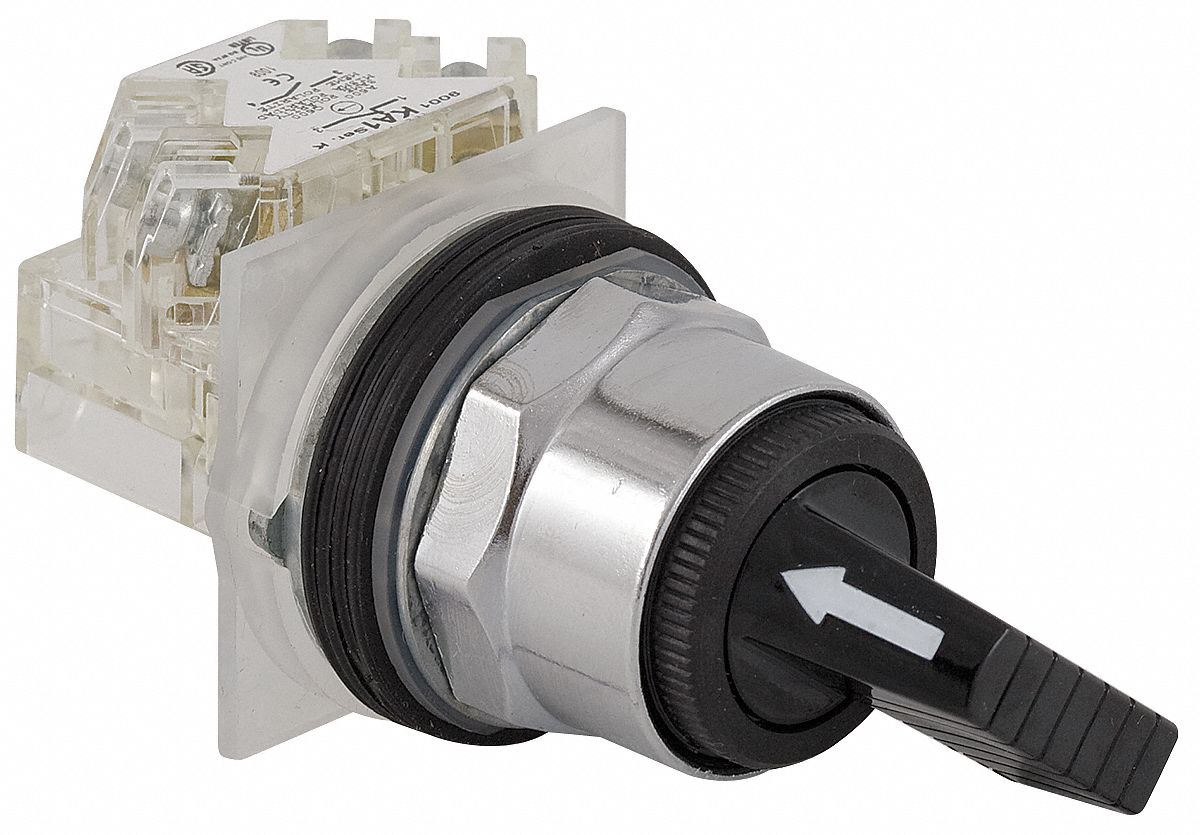

The SCHNEIDER 9001KS11FBH2 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a long-handled knob with a metallic bezel and a polycarbonate operator head. This non-illuminated, maintained/maintained-action switch offers two positions (Off/On) with a DPDT contact configuration, rated at 3 A @ 240 V AC and 0.55 A @ 125 V DC, and uses a Cam E mechanism.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	E
Type	Extended Lever, DPDT, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	9001K
Positions	2
AC Contact Rating	3 A @ 240 V
DC Contact Rating	0.55 A @125 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001KS11FBH2
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
