Schneider 3G-OTH-36165 — Technical Specifications

Name: Schneider 3G-OTH-36165 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, SPDT, Metallic (MPN 9001KS43BH1). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained/Maintained; Cam: C; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

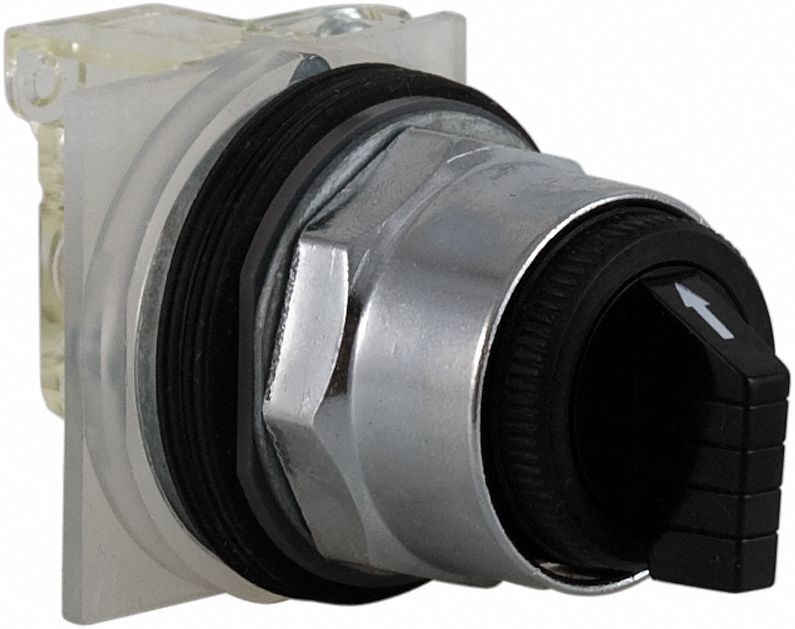

The SCHNEIDER 9001KS43BH1 is a 30 mm panel-mount selector switch from the 9001K Series, featuring a three-position maintained action (On/Off/On) with a short-handled knob and metallic bezel. It is rated for 6 A at 120 V AC and 0.1 A at 600 V DC, with a polycarbonate operator head and Cam C configuration. This non-illuminated switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	C
Type	Short Lever, SPDT, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001KS43BH1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
