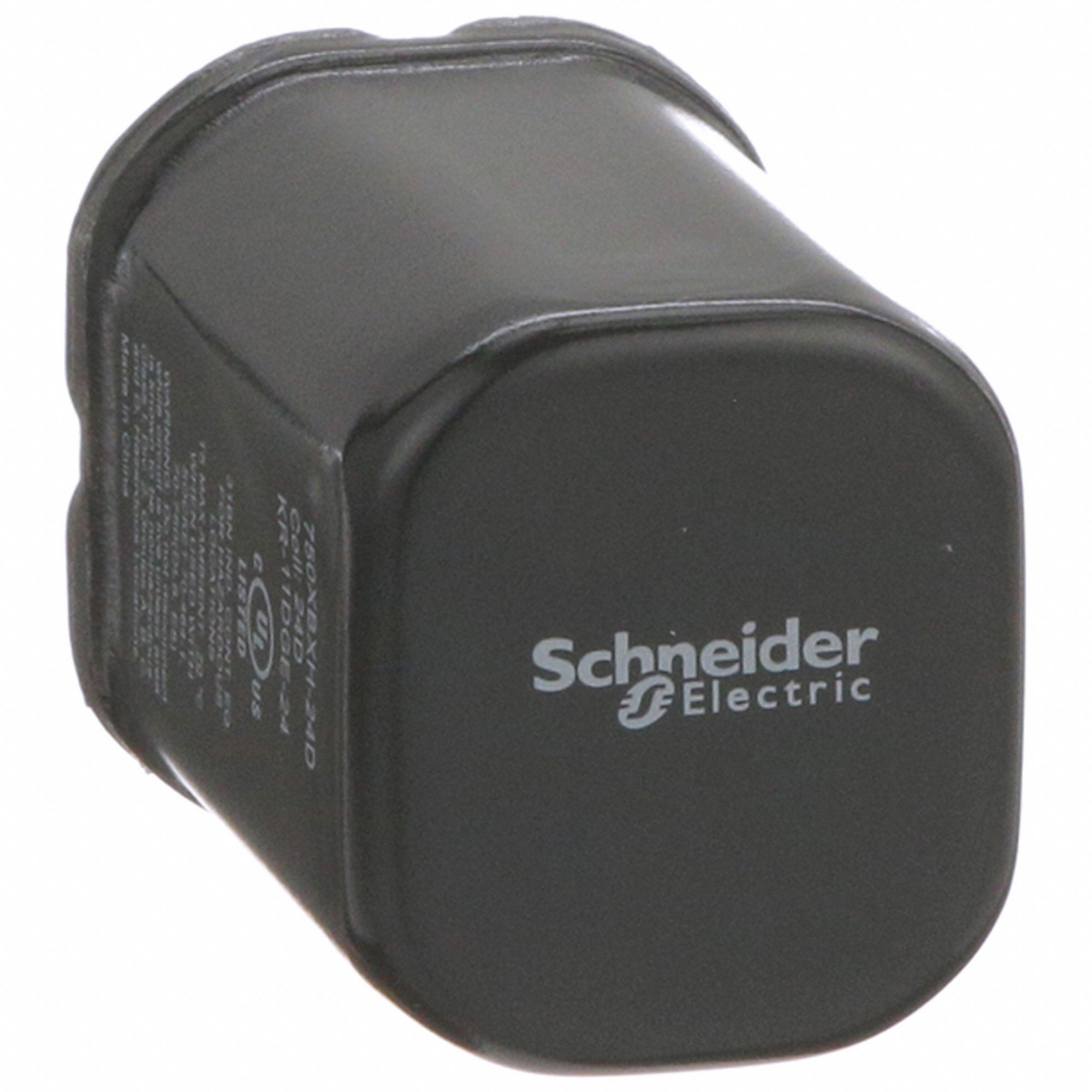

Schneider 3G-OTH-38861 — Technical Specifications

Name: Schneider 3G-OTH-38861 SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 24V DC, DPDT, A Socket (MPN 750XBXH-24D). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Socket; Pin Shape: Round; Electrical Connection: 8-Pin Terminal; Manufacturer Part Number: 750XBXH-24D; Operating Current: 12 A at 120V AC (Conforming to UL); Series: 750H Haz Location Series.
Brand: Schneider

The SCHNEIDER Hermetically Sealed Relay: Socket Mounted (MPN 750XBXH-24D) is a socket-mounted relay from the 750H Haz Location Series. It features an octal base with round pins, an 8-pin terminal electrical connection, and a DPDT contact configuration. The relay has an operating current of 12 A at 120V AC (Conforming to UL) and operates at 24V DC.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	DPDT, A Socket
Brand	SCHNEIDER
Series	750H Haz Location Series
Base Type	Octal
Pin Shape	Round
Current Rating	12 A
Mounting Style	Socket
Operating Current	12 A at 120V AC (Conforming to UL)
Electrical Connection	8-Pin Terminal
Manufacturer Part Number	750XBXH-24D
