Schneider 3G-OTH-34333 — Technical Specifications

Name: Schneider 3G-OTH-34333 SCHNEIDER Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO, Metallic (MPN XB4BD21). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

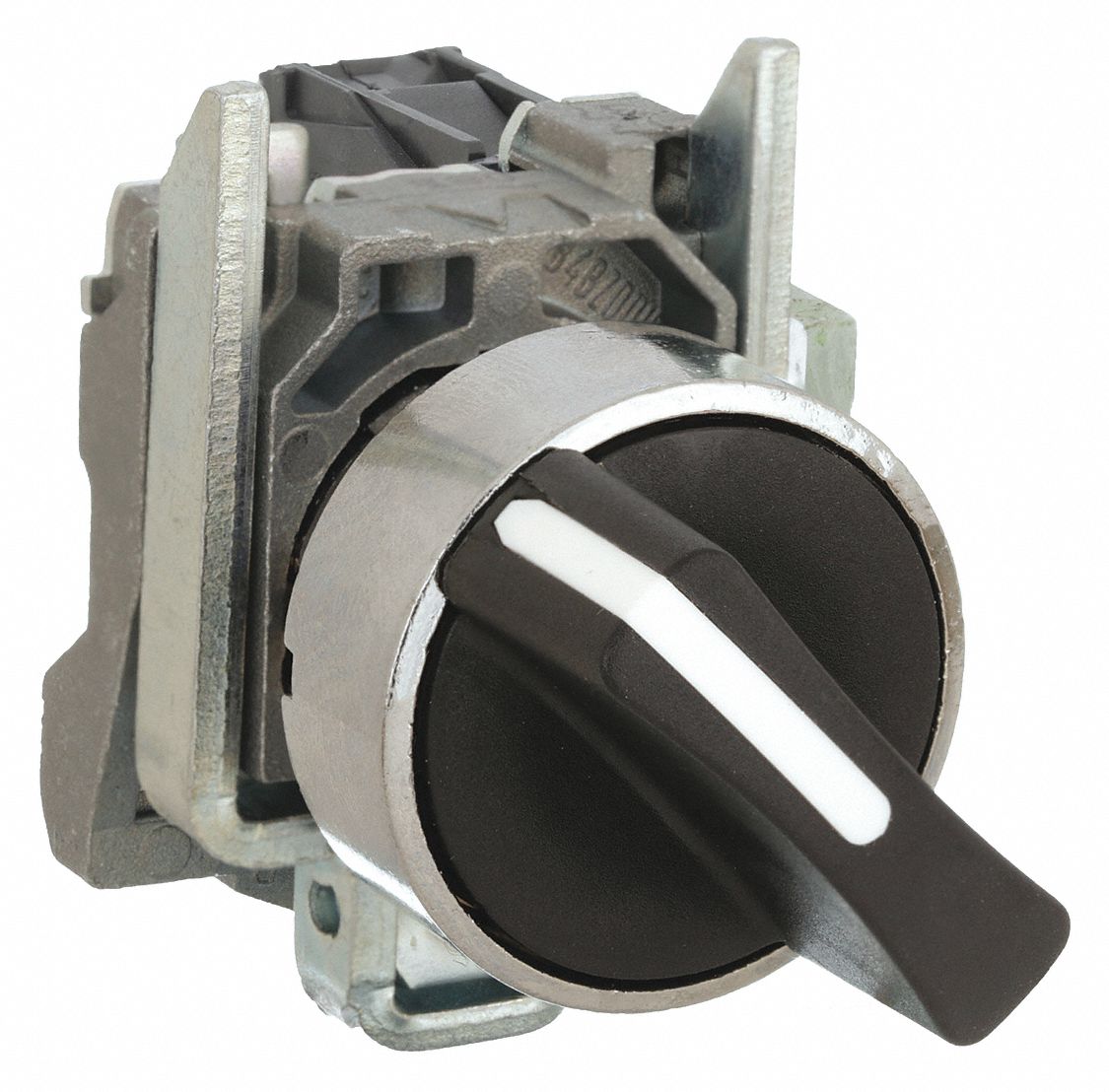

The SCHNEIDER XB4BD21 is a 22 mm panel-mounting selector switch from the XB4 series, featuring a short-handled knob with a maintained/maintained action and two positions (Off/On). It has a metallic bezel, a plastic operator head, and is non-illuminated with no cam included. The switch is rated for AC contact at 6 A @ 120 V and DC contact at 0.1 A @ 600 V, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	XB4
Positions	2
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4BD21
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
