Schneider 3G-OTH-35513 — Technical Specifications

Name: Schneider 3G-OTH-35513 SCHNEIDER Selector Switch: 22 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO, Metallic (MPN XB4BD33). Key specifications — AC Contact Rating: 3 A @ 240 V; Action: Maintained/Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

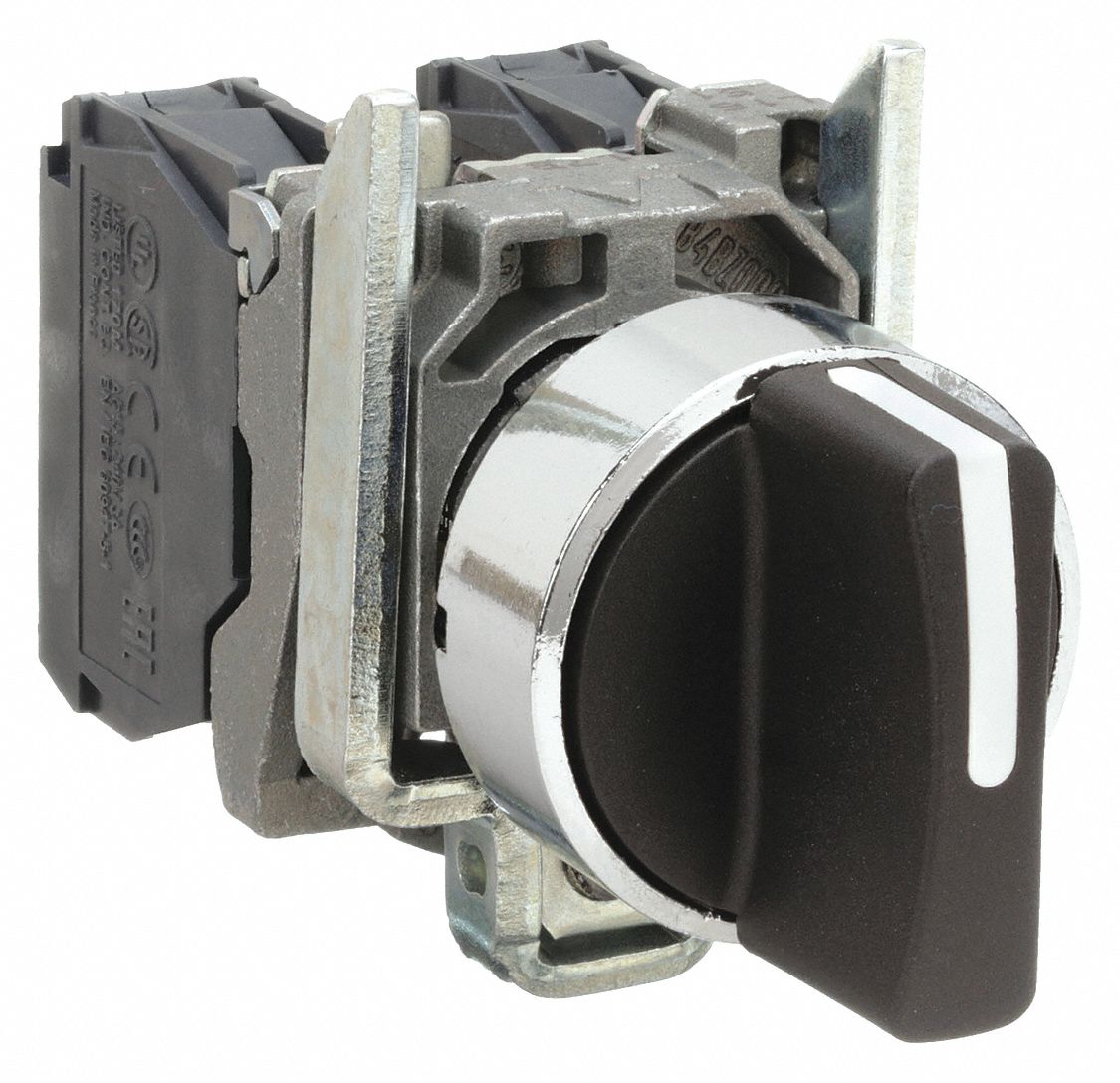

The SCHNEIDER XB4BD33 is a 22 mm panel-mounting selector switch from the XB4 series, featuring a non-illuminated, short-handled knob with a plastic operator head and a metallic bezel. It offers three maintained positions (On/Off/On) with AC contact rating of 3 A @ 240 V and DC contact rating of 0.1 A @ 600 V, and includes no cam.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 2NO, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	XB4
Positions	3
AC Contact Rating	3 A @ 240 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4BD33
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
