Schneider 3G-OTH-35666 — Technical Specifications

Name: Schneider 3G-OTH-35666 SCHNEIDER Selector Switch: 22 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO, Metallic (MPN XB4BD53). Key specifications — AC Contact Rating: 1.2 A @ 600 V; Action: Momentary/Maintained/Momentary; Cam: No Cam Included; DC Contact Rating: 0.27 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

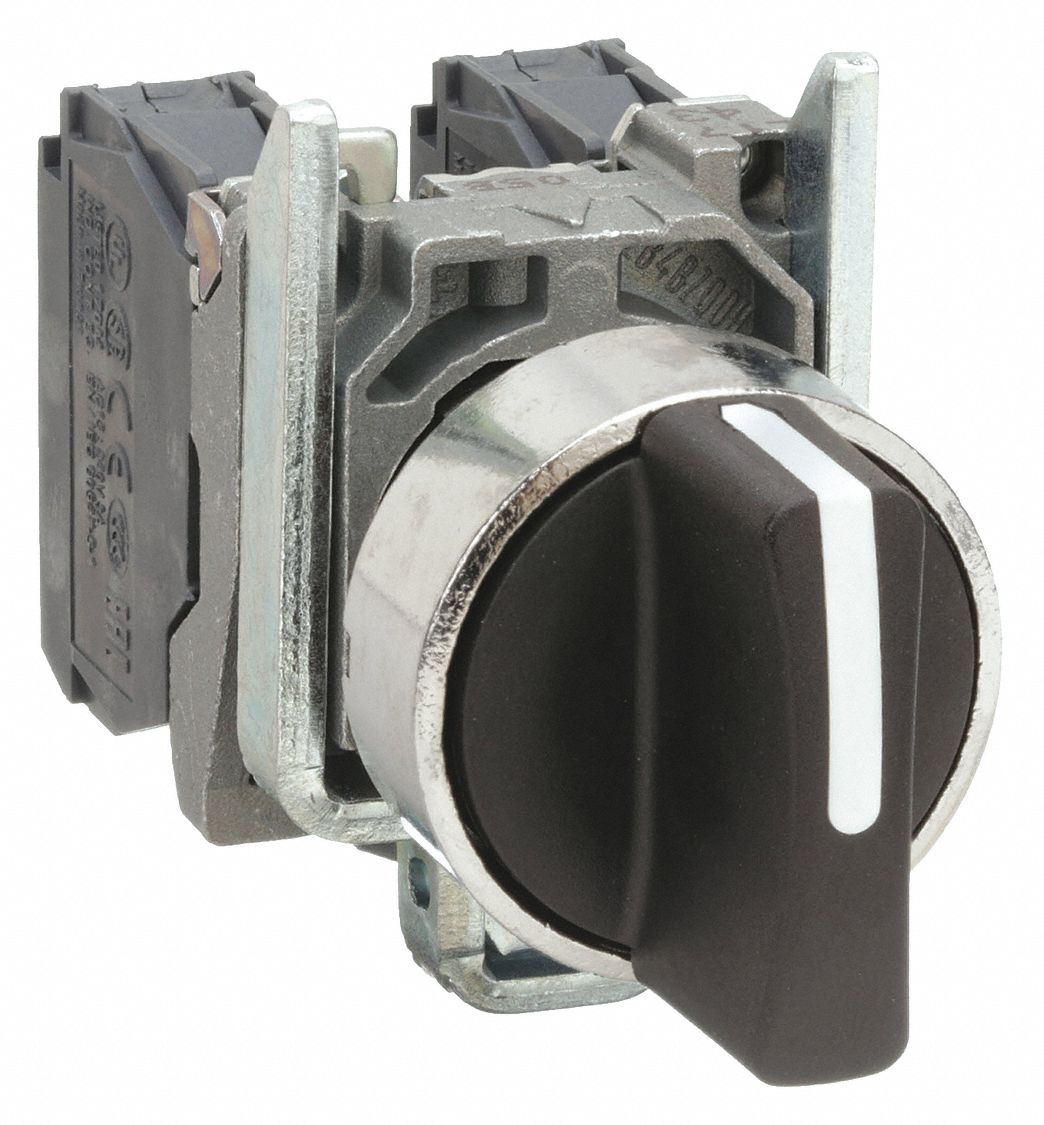

The SCHNEIDER XB4BD53 is a 22 mm panel-mount selector switch from the XB4 series, featuring a short-handled knob with a plastic operator head and a metallic bezel. It offers three positions with a momentary/off/momentary action sequence and is non-illuminated with no cam included. The switch is rated for AC contact at 1.2 A @ 600 V and DC contact at 0.27 A @ 250 V, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 2NO, Metallic
Brand	SCHNEIDER
Action	Momentary/Maintained/Momentary
Series	XB4
Positions	3
AC Contact Rating	1.2 A @ 600 V
DC Contact Rating	0.27 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4BD53
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Momentary
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	Momentary
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
