Schneider 3G-OTH-41640 — Technical Specifications

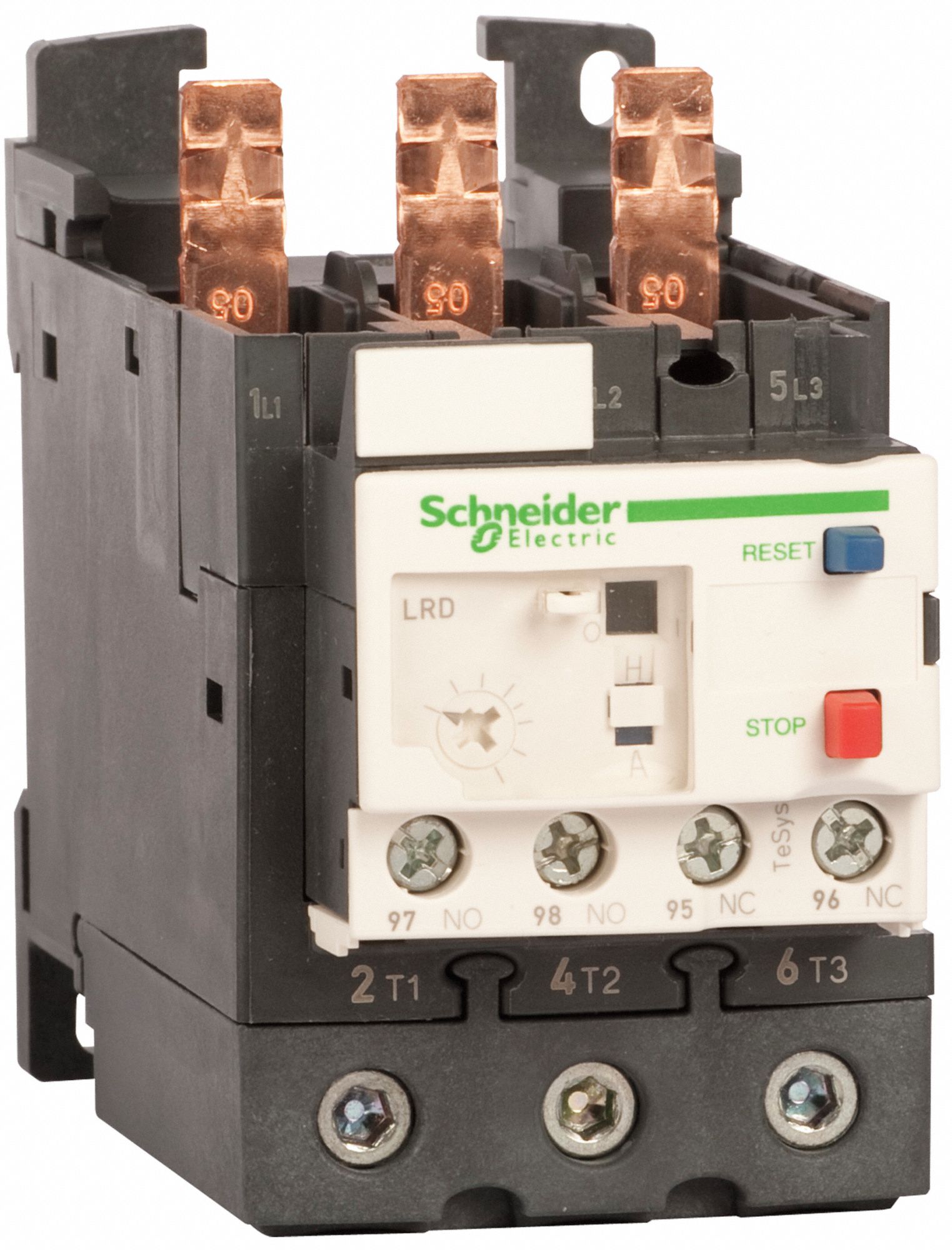

The SCHNEIDER LRD332L is an IEC thermal overload relay with integrated bimetallic elements, designed for use with TeSys Deca contactors (40 to 65 Amp models). It features a 1NO/1NC auxiliary contact form, phase loss sensitivity, and screw clamp terminals, with a maximum voltage rating of 690V AC. This three-pole relay covers a current range of 23 A to 32 A and requires no external thermal units.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 23 A – 32 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (40 to 65 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LRD332L |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
