Schneider Electric 3G-OTH-40899 — Technical Specifications

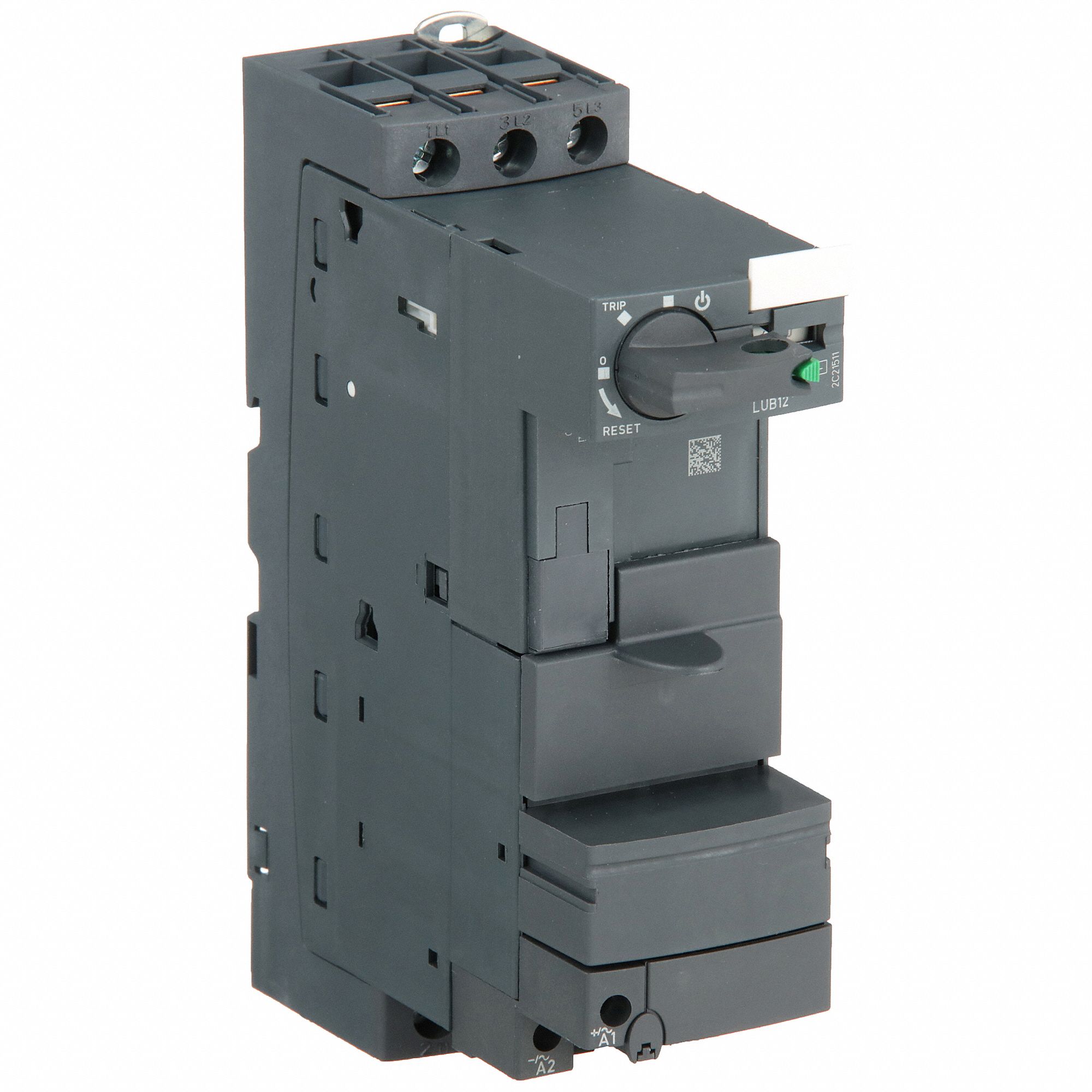

The SCHNEIDER ELECTRIC Starter Power Base: Non-Reversing (SKU 5AB63, MPN LUB12) is a 3-pole power base with a maximum current rating of 12 A AC and a voltage range of 24-240V AC/DC. It features an auxiliary contact form of 1NO/1NC and a maximum voltage rating of 690V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| AC/DC | 24 - 240V |
| Brand | SCHNEIDER ELECTRIC |
| Poles | 3 |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Manufacturer Part Number | LUB12 |
| Power Base Max Current (AC) | 12 A |
