Siemens 3G-OTH-67178 — Technical Specifications

Name: Siemens 3G-OTH-67178 Actuator: Dampers, Floating Point, Non-Spring Return, 44 in-lb, 24V AC, NEMA 2 / IP54 (MPN GDE131.1P). Key specifications — Manufacturer Part Number: GDE131.1P; Shaft Type: Set Screw Shaft Coupling; Shaft Rotation: CW/CCW; Stroke Degree: 90°; Plenum Rating: Plenum Rated; Input Voltage: 24V AC; Brand: SIEMENS; For Use With Building Automation Systems: Building Automation System Compatible.
Brand: Siemens

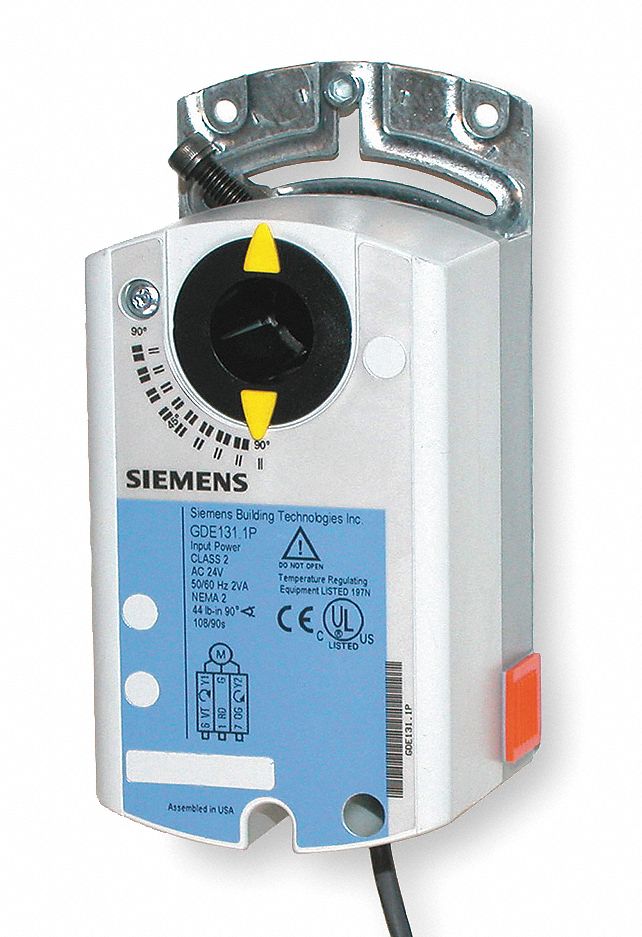

The Siemens GDE131.1P is a non-fail-safe damper actuator with a set screw shaft coupling, designed for 90° stroke and CW/CCW shaft rotation. It operates on 24V AC input voltage with a 0 to 10V DC output signal, is plenum rated, and is compatible with building automation systems.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	Floating Point, Non-Spring Return, 44 in-lb, NEMA 2 / IP54
Brand	SIEMENS
Shaft Type	Set Screw Shaft Coupling
Input Voltage	24V AC
Output Signal	0 to 10V DC
Plenum Rating	Plenum Rated
Stroke Degree	90°
Shaft Rotation	CW/CCW
Manufacturer Part Number	GDE131.1P
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
For Use With Building Automation Systems	Building Automation System Compatible
