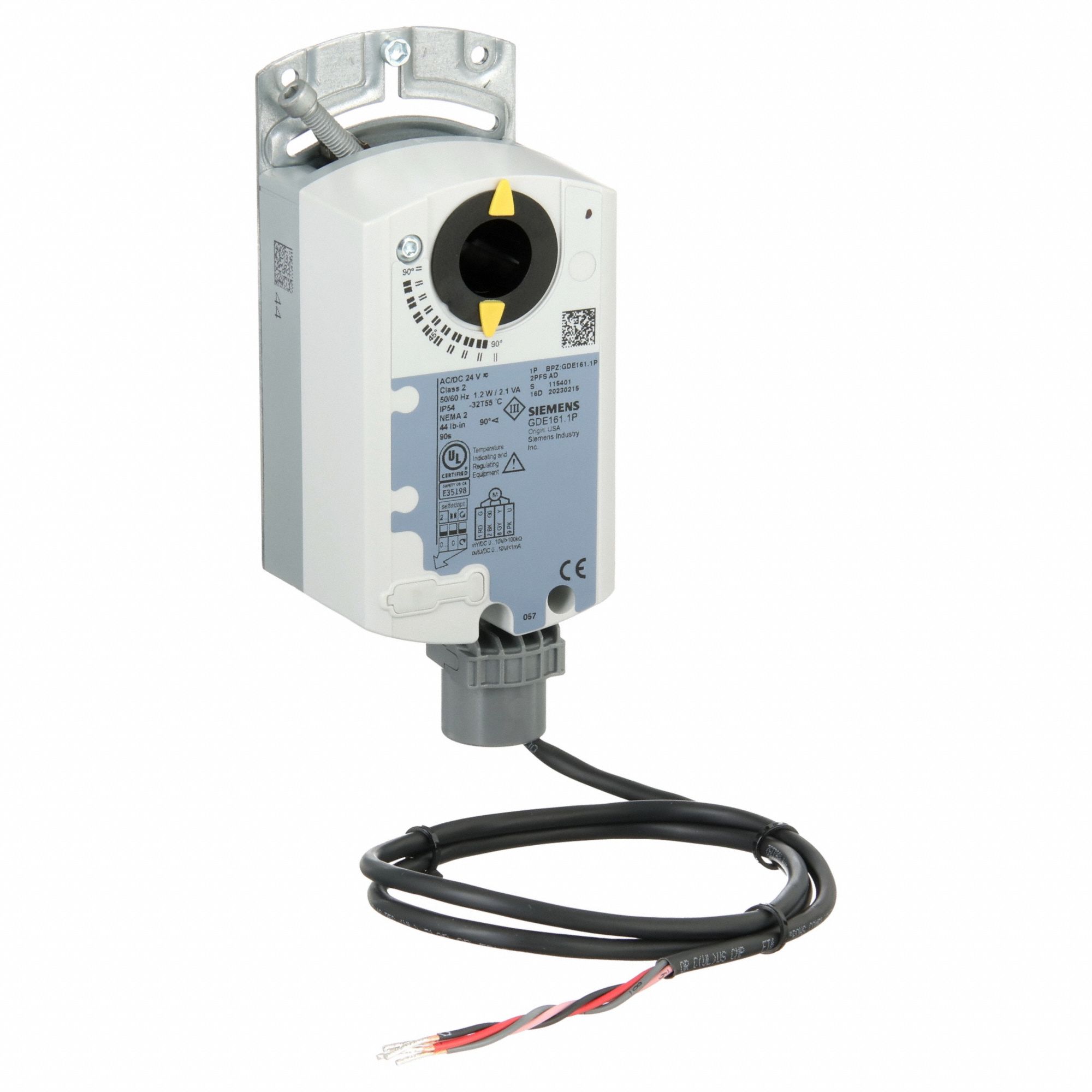

Siemens 3G-OTH-67205 — Technical Specifications

Name: Siemens 3G-OTH-67205 Actuator: Dampers, Proportional, Non-Spring Return, 44 in-lb, 24V AC, Hardwired Plenum Rated Cables (MPN GDE161.1P). Key specifications — Manufacturer Part Number: GDE161.1P; Shaft Type: Set Screw Shaft Coupling; Shaft Rotation: CW/CCW; Stroke Degree: 90°; Plenum Rating: Plenum Rated; Input Voltage: 24V AC; Brand: SIEMENS; For Use With Building Automation Systems: Building Automation System Compatible.
Brand: Siemens

The Siemens GDE161.1P is a non-fail-safe, proportional damper actuator with a set screw shaft coupling, designed for 90° stroke and CW/CCW rotation. It operates on 24V AC input with a 0 to 10V DC output signal, is plenum rated, and is compatible with building automation systems.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	Proportional, Non-Spring Return, 44 in-lb, Hardwired Plenum Rated Cables
Brand	SIEMENS
Shaft Type	Set Screw Shaft Coupling
Input Voltage	24V AC
Output Signal	0 to 10V DC
Plenum Rating	Plenum Rated
Stroke Degree	90°
Shaft Rotation	CW/CCW
Manufacturer Part Number	GDE161.1P
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
For Use With Building Automation Systems	Building Automation System Compatible
