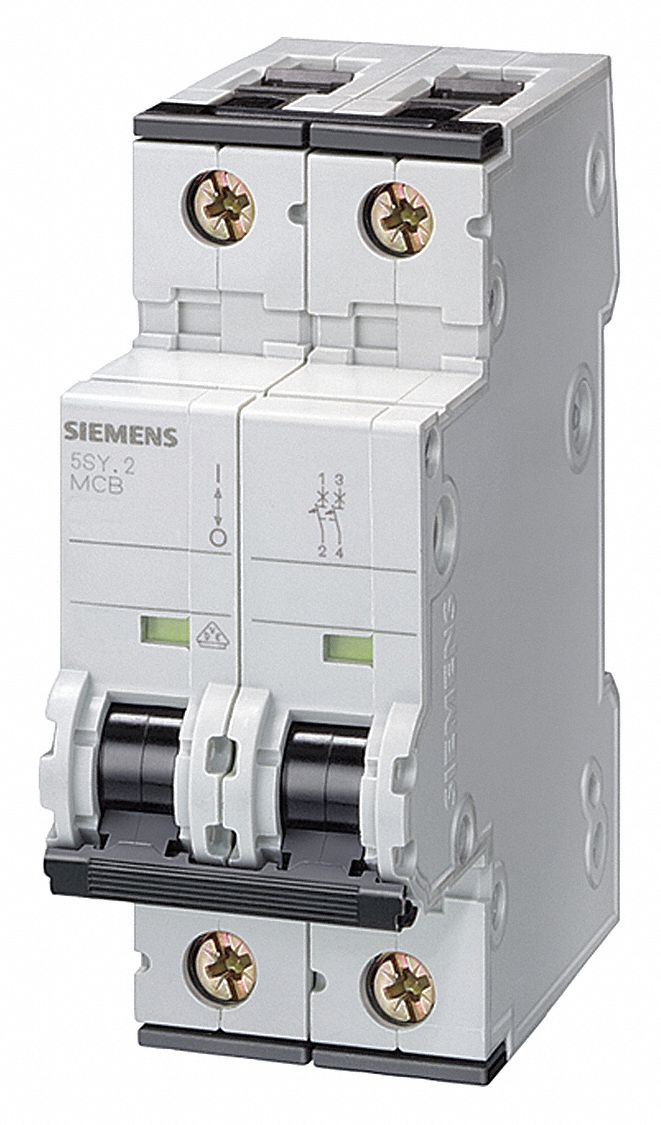

Siemens 3G-OTH-21124 — Technical Specifications

Name: Siemens 3G-OTH-21124 SIEMENS IEC Supplementary Protector: 40 A Amps, 5kA at 400V AC, Screw Clamp, 5SY6, 400V AC, C (MPN 5SY62407). Key specifications — Terminal Connection: Screw Clamp; AC Voltage Rating: 400V AC; Curve Type: C; DC Voltage Rating: Not Rated; Max. AIR Rating: 5kA at 400V AC; Series: 5SY6; Brand: SIEMENS.
Brand: Siemens

The SIEMENS IEC Supplementary Protector (SKU 30XX90) is a C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 40 A Amps. It features a Max. AIR Rating of 5kA at 400V AC and an AC Voltage Rating of 400V AC, with a Screw Clamp terminal connection. This unit is part of the 5SY6 series (MPN 5SY62407) and is not rated for DC voltage.

View Product & Quote

Technical Specifications

Parameter	Value
AC	400V
Type	5kA at 400V AC, Screw Clamp, 5SY6, C
Brand	SIEMENS
Series	5SY6
Curve Type	C
Max. AIR Rating	5kA at 400V AC
AC Voltage Rating	400V AC
DC Voltage Rating	Not Rated
Terminal Connection	Screw Clamp
Manufacturer Part Number	5SY62407
