Siemens 3G-OTH-34629 — Technical Specifications

Name: Siemens 3G-OTH-34629 SIEMENS Selector Switch: 22 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC, Metallic (MPN 3SU1150-2BL60-1LA0). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Siemens

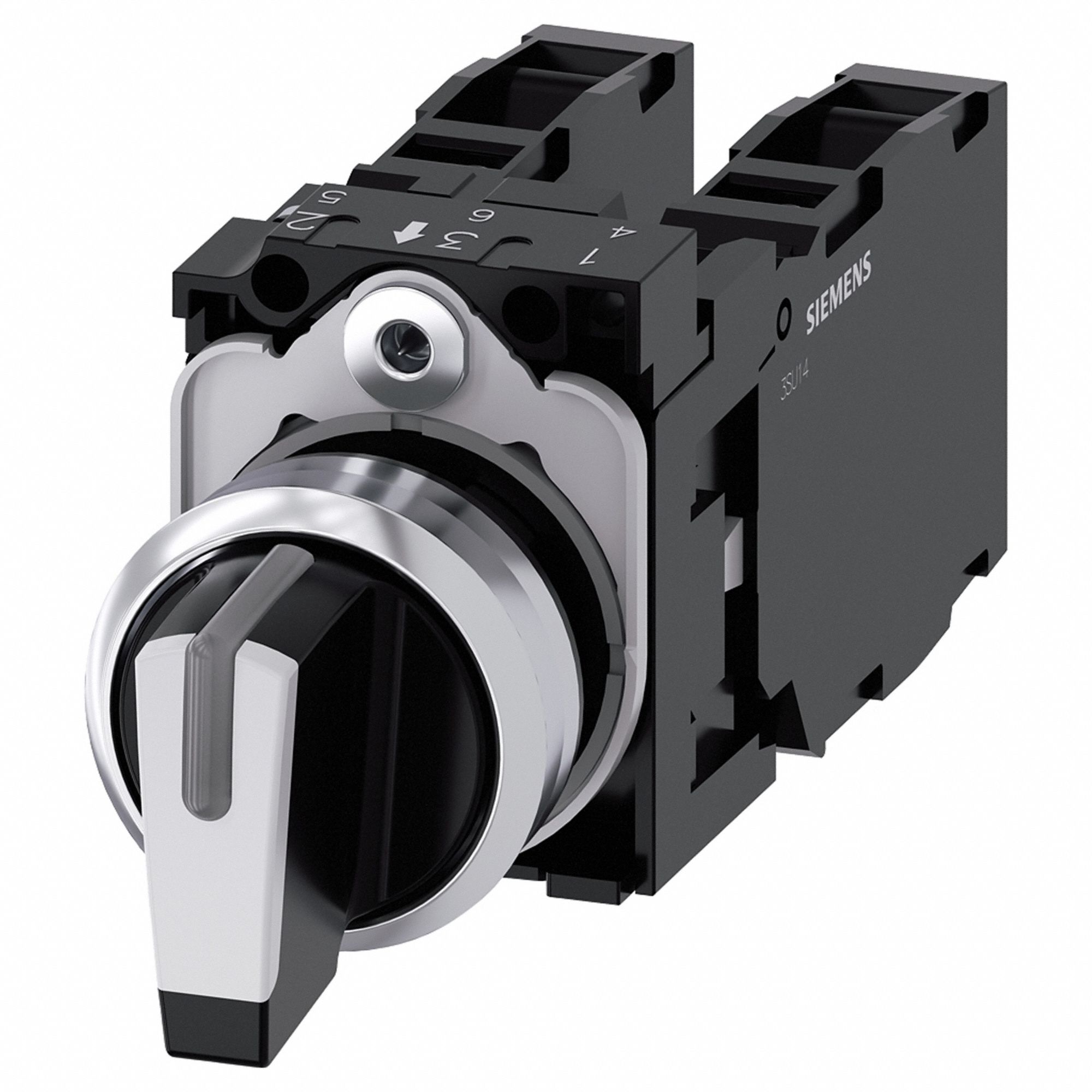

This SIEMENS illuminated selector switch, part of the 3SU1150 series, is a 22 mm panel-mounting device with a short-handled knob and metallic bezel. It features a maintained/maintained/maintained action across three positions (On/Off/On) and is rated for AC contact at 10 A @ 600 V and DC contact at 1 A @ 600 V. The operator head is made of plastic, and the switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 2NO/2NC, Metallic
Brand	SIEMENS
Action	Maintained/Maintained/Maintained
Series	3SU1150
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	3SU1150-2BL60-1LA0
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
